Bard Parts Lookup Tool

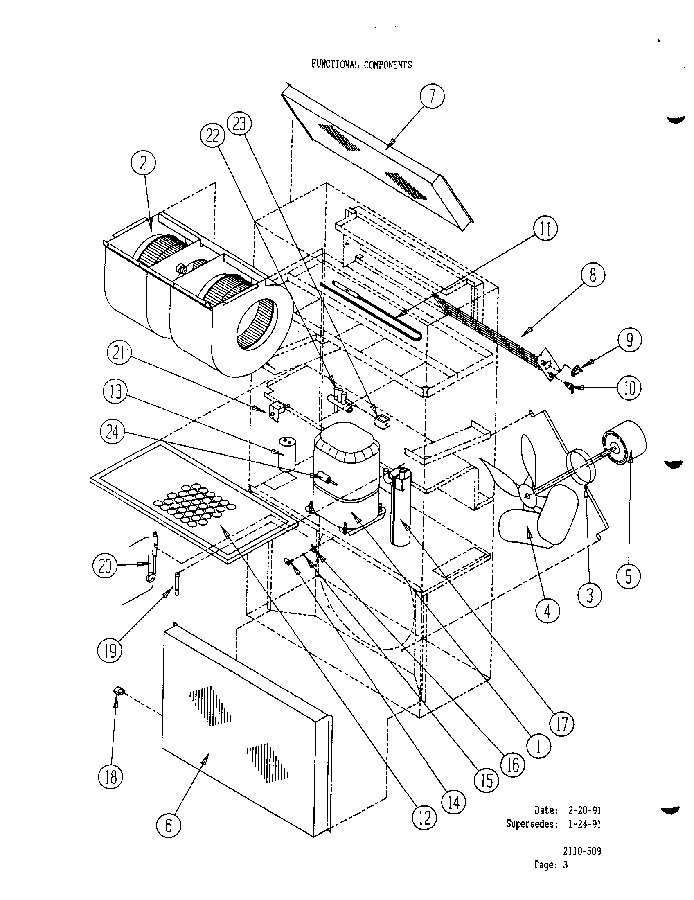

| 1 | Compressor H23A383ABCA | 8000-087 | 8000-886BX | $2,217.00 | |
| 2 | Blower Assembly (Complete) | 900-039 | 900-231BX | $568.00 | |
| 3 | Motor Mount (Condenser) | 8200-001 | 8200-001BX | $94.00 | |
| 4 | Fan Blade | 5151-032 | 5151-032BX | $283.00 | |
| 5 | Condenser Motor | 8103-019 | 8103-019BX | $220.00 | |
| 6 | Condenser Coil | 5051-053 | Call | ||
| 7 | Evaporator Coil | 5060-052 | Call | ||
| 11 | Cooling Capillary Assembly | 800-0118 | $72.00 | ||
| 12 | Air Filter Assembly | 7003-025 | $33.00 | ||
| 13 | Capacitor 35/440 | 8552-028 | 8552-049BX | $35.00 | |
| 14 | 1/4 Turn Fastener | 1171-019 | $3.00 | ||
| 15 | Fastener Retainer | 1171-021 | Call | ||
| 16 | Fastener Receptacle | 1171-020 | Call | ||
| 17 | Accumulator | 5202-016 | 5202-022 | $141.00 | |
| 18 | Defrost Thermostat | 8408-016 | 8620-025 | $34.00 | |
| 19 | Check Valve | 5651-036 | 5651S036BX | $67.00 | |
| 20 | Heating Capillary Assembly | 800-0144 | $76.00 | ||
| 21 | High Pressure Switch | 8406-010 | Call | ||
| 22 | Reversing Valve | 5650-013 | 5650-038BX | $90.00 | |
| 23 | Solenoid Coil | 5650-008 | Call | ||
| 24 | Low Pressure Switch | 8406-049 | S1804-0107 | $69.00 |
| NS | Wiring Diagram (PDF file download) | 4013-112 | - | ||
| NS | Control Panel Cover | 132-098 | $13.00 | ||
| 1 | Low Voltage Terminal Strip | 8607-019 | $14.00 | ||
| 2 | Circuit Breaker | 8615-015 | 8615-040BX | $47.00 | |
| 8615-057BX | $11.00 | ||||
| 3 | Compressor Contactor | 8401-007 | S8401-007 | $33.00 | |
| 4 | Ground Terminal | 8611-006 | $3.00 | ||
| 6 | Transformer | 8407-035 | 8407-068BX | $89.00 | |
| 8 | Blower Relay | 8201-009 | 8201-009BX | $18.00 | |
| 9 | Compressor Fault Relay | 8201-024 | Call | ||
| 11 | Defrost Timer | 8612-012 | 8612-012BX | $287.00 | |
| 12 | Defrost Relay | 8201-047 | 8620-104 | $79.00 | |
| 17 | Time Delay Relay (Compressor) | 8201-050 | 8201-050BX | $23.00 |

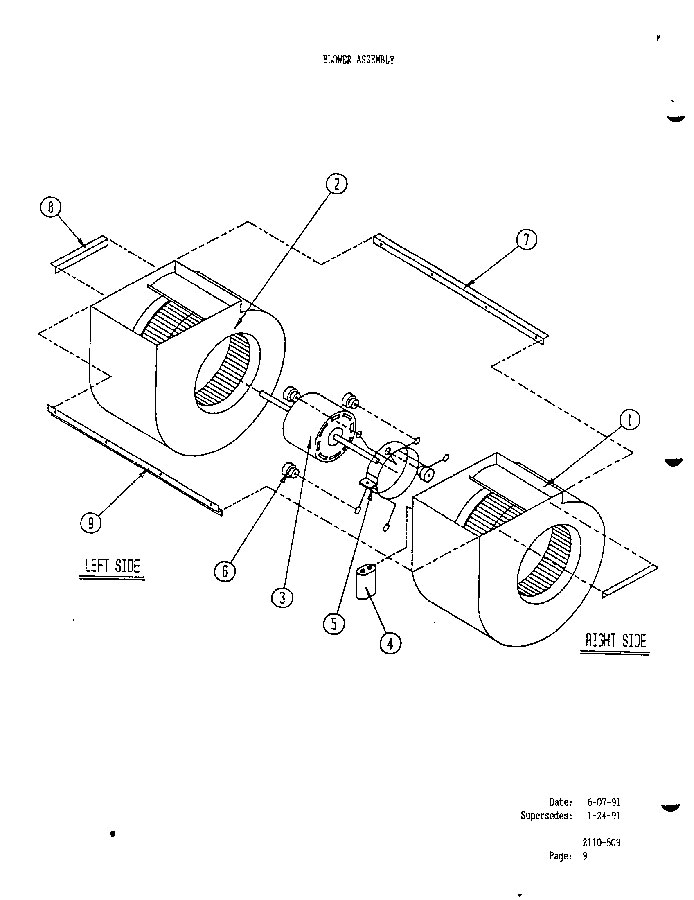

| 1 | Housing, Wheel and Cutoff (CW) | 5152-051 | 5152-051BX | $335.00 | |
| 2 | Housing, Wheel and Cutoff | 5152-052 | 5152-052BX | $335.00 | |
| 3 | Blower Motor (230/208) | 8105-029 | 8105-029BX | $286.00 | |
| 4 | Capacitor | 8552-002 | 8552-002BX | $30.00 | |
| 5 | Motor Mount | 8200-031 | 8200-031BX | $57.00 | |
| 6 | Gronnets | 5451-011 | $2.00 | ||
| 7 | Back Brace | 104-505 | $36.00 | ||
| 8 | Side Angle | 104-001 | $3.00 | ||
| 9 | Front Brace | 102-300 | $12.00 |
| Heat kit not found |
- Manufactured: December, 1991
- Parts Manual: 2110-509(B).pdf
