Bard Parts Lookup Tool
| NS | Wiring Diagram (PDF file download) | 4089-220 | - | ||
| NS | Control Panel Cover | 133-053 | $40.00 | ||
| 1 | Low Voltage Terminal Strip | 8607-019 | $14.00 | ||
| 2 | Fuse Block | 8614-021 | Call | ||
| 3 | Heat Contactor | 8401-006 | 8401-006BX | $42.00 | |
| 5 | Heating Blower Relay | 8201-008 | 8201-008BX | $18.00 | |
| 7 | Compressor Contactor | 8401-002 | 8401-002BX | $60.00 | |
| 10 | High Pressure Switch | 8406-010 | Call | ||
| 11 | Timer | 8612-012 | 8612-012BX | $287.00 | |
| 12 | Defrost Relay | 8201-047 | 8620-104 | $79.00 | |
| 15 | Transformer | 8407-037 | 8407-069BX | $71.00 | |
| 15 | Transformer | 8407-035 | 8407-068BX | $89.00 | |
| 16 | Ground Terminal | 8611-006 | $3.00 |

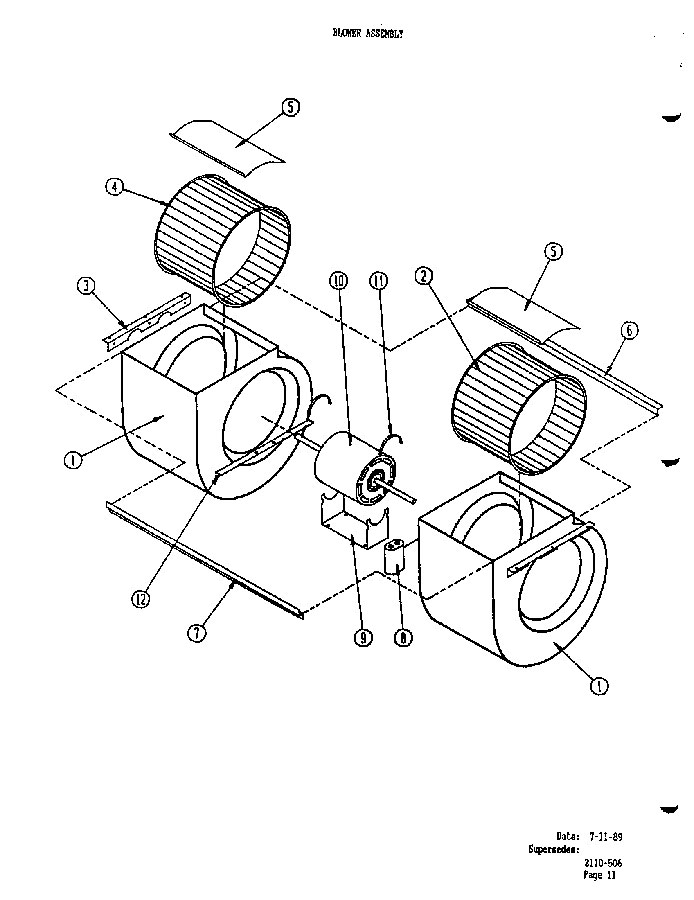

| 1 | Blower Housing | 151-068 | 151-101BX | $151.00 | |
| 2 | Blower Wheel 10-8, CW | 5152-011 | 5152-011BX | $119.00 | |
| 3 | Blower Angle | 104-791 | $8.00 | ||
| 4 | Blower Wheel 10-8, CCW | 5152-012 | 5152-012BX | $119.00 | |
| 5 | Diffuser | 144-126 | 144-166 | $7.00 | |
| 6 | Back Brace | 104-802 | $29.00 | ||
| 7 | Front Offset | 102-389 | 103-389BX | $57.00 | |
| 8 | Capacitor 10/370 | 8552-005 | 8552-005BX | $31.00 | |
| 9 | Motor Mount--Cradle | 128-002 | $20.00 | ||
| 10 | Motor | 8106-023 | 8106-023BX | $316.00 | |
| 11 | Motor Mount Latch | 8200-018 | Call | ||
| 12 | Motor Support Angle | 104-788 | $21.00 |
| Heat kit not found |
- Manufactured: December, 1992
- Parts Manual: 2110-506(C).pdf
- Wiring Diagram: 4089-220.pdf
