Bard Parts Lookup Tool

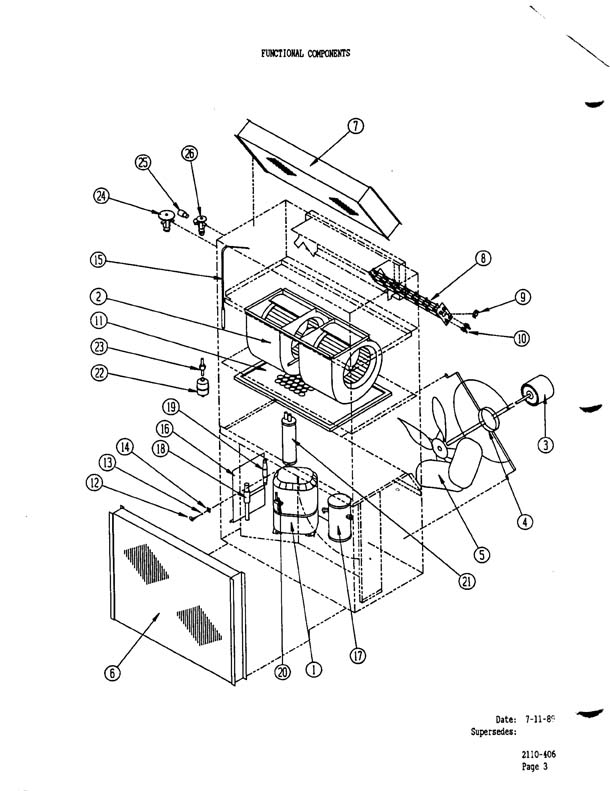

| 1 | Compressor CRK3-0325-PFV | 8000-063 | 8000-888BX | $2,199.00 | |
| 2 | Blower Assembly (Complete) | 900-119 | $981.00 | ||
| 3 | Condenser Motor | 8105-035 | 8105-039BX | $278.00 | |
| 4 | Motor Mount--Condenser | 8200-004 | 8200-004BX | $57.00 | |
| 5 | Fan Blade | 5151-027 | 5151-060BX | $142.00 | |
| 6 | Condenser Coil | 5051-028 | Call | ||
| 7 | Evaporator Coil | 5060-025 | Call | ||
| 8 | Heat Strip | 8604-091 | 8604-091BX | $169.00 | |
| 9 | Limit Control | 8402-047 | 8402-047BX | $51.00 | |
| 10 | Thermal Cutoff 4K9239H | 8402-032 | S8402-096 | $28.00 | |
| 11 | Air Filter 20 x 30 x 1 | 7004-016 | $17.00 | ||
| 12 | 1/4 Turn Fastener | 1171-019 | $3.00 | ||
| 13 | Retainer Washer | 1171-021 | Call | ||
| 14 | Receptacle | 1171-020 | Call | ||
| 17 | Receiver | 5203-006 | Call | ||
| 18 | Head Pressure Control Valve | 5651-015 | 5651-015BX | $307.00 | |
| 19 | Pressure Differential Valve | 5651-016 | Call | ||
| 20 | Shutoff Valve | 5651-051 | $69.00 | ||
| 21 | Accumulator | 5202-018 | $178.00 | ||
| 22 | Filter Drier | 5201-002 | 5201-023BX | $64.00 | |
| 23 | Sight Glass | 5201-014 | $47.00 | ||
| 24 | Hot Gas Bypass Valve | 5651-064 | 5651-014BX | $524.00 | |
| 25 | Distributor | 5651-008 | $89.00 | ||
| 26 | Expansion Valve | 5651-040 | 5651-101BX | $377.00 |
| NS | Wiring Diagram (PDF file download) | 4010-130 | - | ||
| NS | Wiring Diagram (PDF file download) | 4010-133 | - | ||
| NS | Control Panel Cover | 132-081 | Call | ||
| 1 | Low Voltage Strip | 8607-018 | 8607-020BX | $19.00 | |
| 2 | Terminal Block | 8607-013 | 8607-013BX | $24.00 | |
| 2 | Fuse Block | 8614-018 | $46.00 | ||
| 3 | Transformer | 8407-034 | Call | ||
| 4 | Blower Relay | 8201-009 | 8201-009BX | $18.00 | |
| 5 | Heat Contactor | 8401-006 | 8401-006BX | $42.00 | |
| 6 | Ground Terminal | 8611-006 | $3.00 | ||
| 7 | Compressor Contactor | 8401-003 | 8401-025BX | $44.00 | |
| 8 | Compressor Capacitor 40/440 | 8552-030 | 8552-096BX | $37.00 |

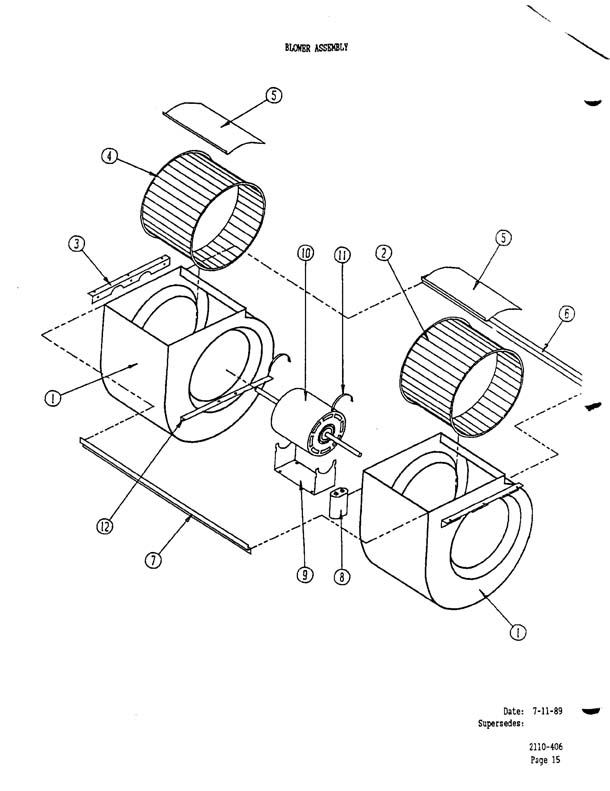

| 1 | Blower Housing | 151-068 | 151-101BX | $151.00 | |
| 2 | Blower Wheel 10-8, CW | 5152-011 | 5152-011BX | $119.00 | |
| 3 | Blower Angle | 104-791 | $8.00 | ||
| 4 | Blower Wheel 10-8, CCW | 5152-012 | 5152-012BX | $119.00 | |
| 5 | Diffuser | 144-126 | 144-166 | $7.00 | |
| 6 | Back Brace | 104-802 | $29.00 | ||
| 7 | Front Offset | 103-389 | 103-389BX | $57.00 | |
| 8 | Capacitor 10/370 | 8552-005 | 8552-005BX | $31.00 | |
| 9 | Motor Mount--Cradle | 128-002 | $20.00 | ||
| 10 | Motor | 8106-023 | 8106-023BX | $316.00 | |
| 11 | Motor Mount Latch | 8200-018 | Call | ||
| 12 | Motor Support Angle | 104-788 | $21.00 |
| Heat kit not found |
- Manufactured: December, 1992
- Parts Manual: 2110-406(E).pdf
- Wiring Diagram: 4010-130(P).pdf
.1.jpg)
.2.jpg)
.4.jpg)
