Parts Lookup: MHP36A-A00/C - Bard Wall Mount

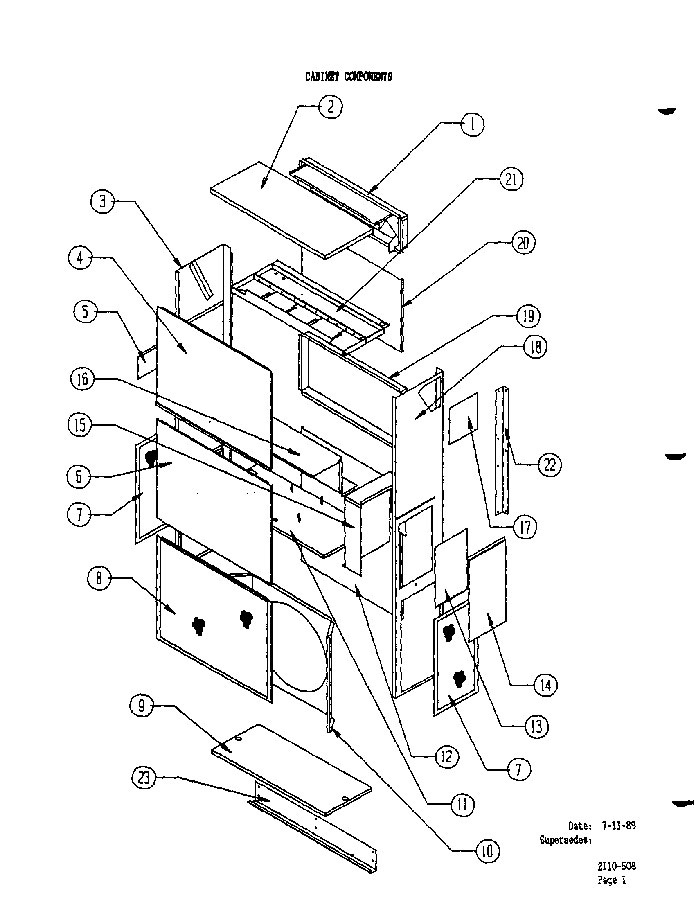

Cabinet Component

1	Outlet Air Frame Weld Assembly	111-021		$90.00
2	Top Assembly	506-096		📞 Call
3	Left SideAssembly	501-167		📞 Call
4	Upper Front Assembly	541-058		📞 Call
4	Upper Front Assembly	514-058		📞 Call
5	Cover Plate--Fresh Air	142-023		📞 Call
6	Lower Front Assembly	514-057		📞 Call
7	Side Condenser Grille	118-019		$29.00
8	Front Conderser Grille	118-018		$50.00
9	Lower Base	126-001		📞 Call
10	Fan Shroud	124-014	124-014BX	$117.00
11	Compressor Base Weld Assembly	127-122		📞 Call
12	Lower Back	108-057		📞 Call
13	Control Panel Cover (See control panel drawing & parts list)			📞 Call
14	Outside Control Panel Cover	132-071		📞 Call
16	Compressor Partition Assembly	520-095		📞 Call
17	Side Cover Plate Assembly	542-001		📞 Call
18	Right Side Assembly	501-166		📞 Call
19	Inlet Air Frame	111-018		📞 Call
20	Upper Back Assembly	508-064		📞 Call
21	Water Pan/Blower Partition	121-094	121-094BX	$420.00
22	Side Mounting Bracket	112-002		📞 Call
23	Bottom Mounting Bracket	112-001		📞 Call

Cabinet Components (Standard)

Cabinet Components (Top Outlet)

Cabinet Components – Right

Cabinet Components – Left

Cabinet Components – Right (Extreme Duty Door)

Cabinet Components – Right (Moderate Duty Door)

Cabinet Components – Left (Extreme Duty Door)

Cabinet Components – Left (Moderate Duty Door)

Wall Sleeve Cabinet Components

Cabinet Components – Standard (Extreme Duty Door)

Cabinet Components – Optional (Moderate Duty Door)

Painted Cabinet Components

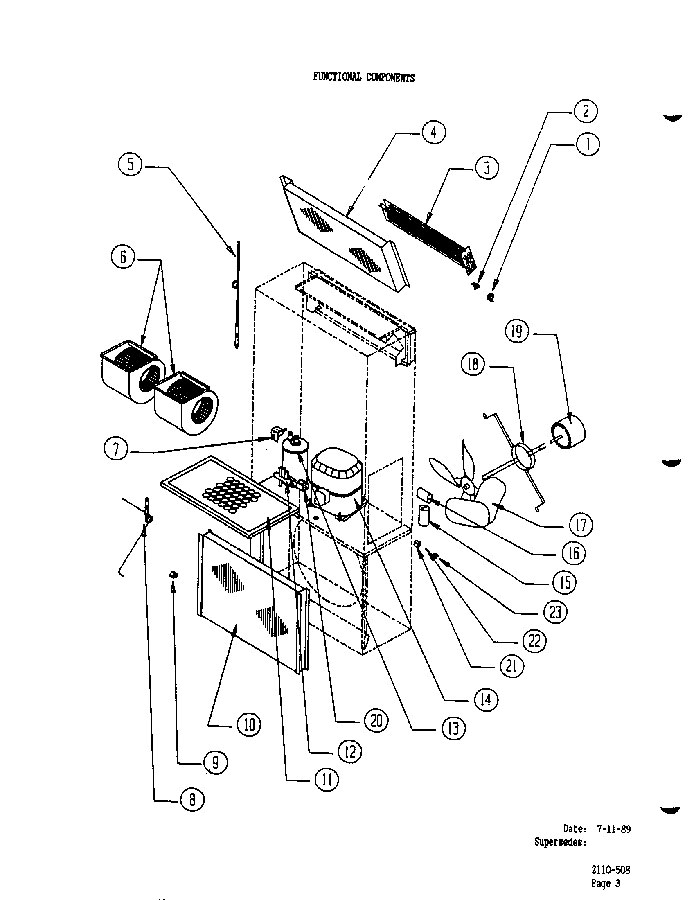

Functional Component

Functional Components – Right Hand

Functional Components – Left Hand

Functional Components – Right & Left Hand

Functional Components – Standard

Functional Components – Dehumidification

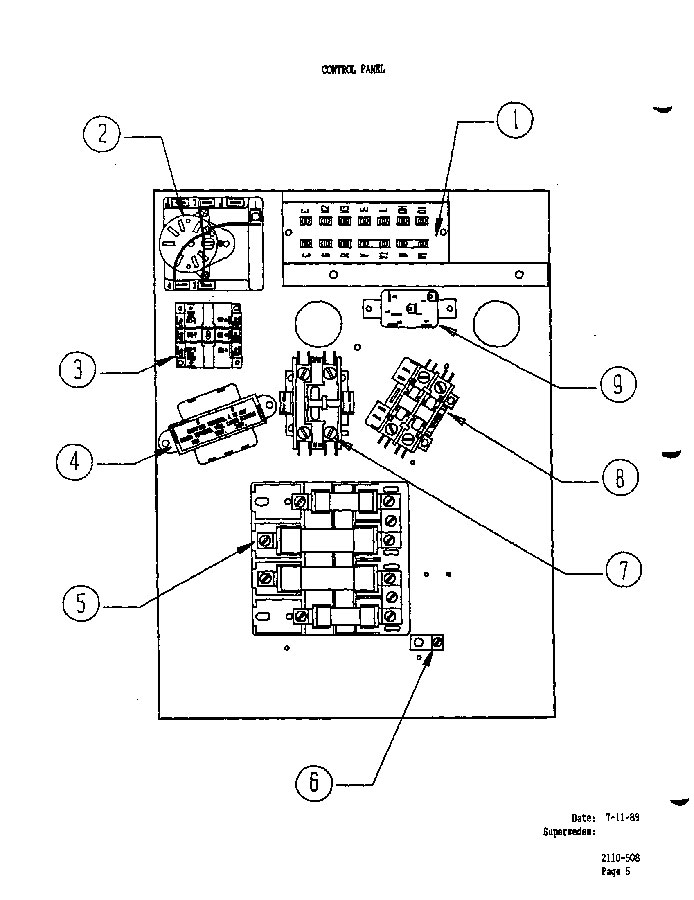

Control Panel

Control Panel Without Circuit Breaker

Control Panel With Circuit Breaker

Control Panel - Right Hand

Control Panel - Left Hand

Control Panel - Right & Left Hand

Upper Control Panel

Lower Control Panel

Control Panel - Standard

Control Panel - Dehumidification

Control Panel Components - 1 Phase

Control Panel Components - 3 Phase

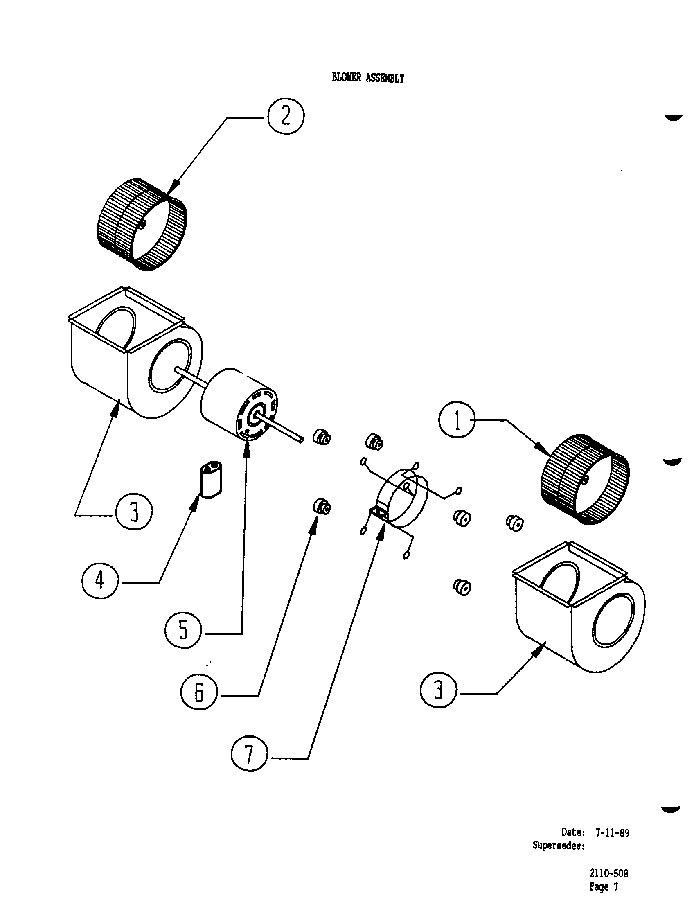

Blower Assembly

1	Blower Wheel CCW	5152-055	5152-062	$502.00
2	Blower Wheel CW	5152-056	5152-063	$415.00
3	Blower Housing	5152-054	5152-062	$502.00
			5152-063	$415.00
4	Capacitor7-1/2 / 370V	8552-004	8552-004BX	$16.00
5	Motor--Evaporator	8106-022	8106-022BX	$350.00
6	Grommet	5451-001		📞 Call
6	Grommet	5451-011		$2.00
7	Motor Mount--Blower	8200-032		$14.00

Heat Kit

Heat kit not found

Optional Climate Controls

Optional Heater Components

Dehumidification Module Components

Electric Heater Components

Vent Box (Only) Components

CRV Components

ERV Components

ERV Control Panel Components

ERV Cassette Components

CRV/ERV Blower Components

4	Evaporator Coil	5060-049		📞 Call
5	Capillary Tube Assembly (Cooling)	800-0082		📞 Call
6	Blower Assembly (Complete)	900-059		$1,722.00
7	High Pressure Switch	8406-010		📞 Call
8	Capillary Tube Assembly (Heat)	800-0080		📞 Call
9	Defrost Thermostat	8408-016	8620-025	$39.00
10	Condenser Coil	5051-049		📞 Call
11	Filter 14x25x1	7004-006		$4.00
12	Reversing Valve	5650-013	5650-038BX	$107.00
13	Accumulator	5202-016	5202-022	$146.00
14	Compressor H23A383ABCA	8000-087	8000-886BX	$2,973.00
15	Capacitor 35/440V	8552-028	8552-049BX	$35.00
16	Capacitor 5/370V	8552-002	8552-002BX	$36.00
17	Fan Blade	5151-032	5151-032BX	$283.00
18	Motor Mount--Fan	8200-001	8200-001BX	$94.00
19	Motor--Condenser	8103-019	8103-019BX	$222.00
20	Reversing Valve Solenoid Coil	5650-008		📞 Call
21	Receptacle	1171-023		$5.00
22	Retainer Clip	1171-024		$3.00
23	1/4 Turn Fastener	1171-022	1171-022BX	$28.00

NS	Wiring Diagram (PDF file download)	4083-111		-
NS	Control PanelCover	132-097		$18.00
1	Low Voltage Termenal Strip	8607-019		$14.00
2	Timer	8612-012	8612-012BX	$287.00
3	Defrost Relay	8201-047	8620-104	$102.00
4	Transformer	8407-035	8407-068BX	$89.00
5	Circuit Breaker	8615-015	8615-040BX	$47.00
			8615-057BX	$11.00
6	Ground Termenal	8611-006		$3.00
7	Contractor (Comp)	8401-007	8401-007BX	$33.00
9	Relay--Blower	8201-009	8201-009BX	$18.00
