Bard Parts Lookup Tool

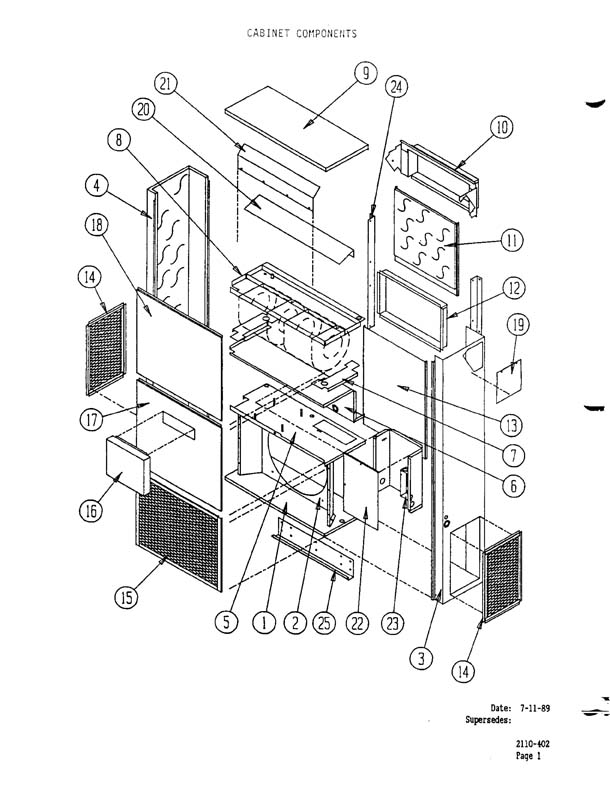

| 1 | Lower Base | 126-001 | $36.00 | ||
| 2 | Fan Shroud | 124-001 | Call | ||
| 3 | Right Side Assembly | 501-162 | $133.00 | ||
| 4 | Left Side Assembly | 501-163 | $135.00 | ||
| 5 | Compressor Base | 127-103 | Call | ||
| 6 | Compressor Partition | 520-096 | $94.00 | ||
| 7 | Filter Support | 130-001 | $8.00 | ||
| 8 | Water Pan Assembly | 121-089 | $351.00 | ||
| 9 | Top | 506-094 | $52.00 | ||
| 10 | Supply Air Frame | 111-028 | Call | ||
| 11 | Upper Back | 508-054 | $52.00 | ||
| 12 | Inlet Air Frame | 111-029 | Call | ||
| 13 | Lower Back | 108-055 | Call | ||
| 14 | Side Condenser Grille | 119-002 | Call | ||
| 15 | Front Condenser Grille | 119-001 | Call | ||
| 16 | Fresh Air Damper | 962001 | Call | ||
| 17 | Service Door | 552-106 | $69.00 | ||
| 18 | Upper Front | 514-045 | $62.00 | ||
| 19 | Side Cover Plate | 542-001 | $11.00 | ||
| 20 | Evaporator Bottom Support Fill | 136-112 | Call | ||
| 21 | Air Baffle | 134-004 | $65.00 | ||
| 22 | See Control Panel Assembly Drawing and Parts List | Control Panel Cvr | Call | ||
| 23 | See Control Panel Assembly Drawing and Parts List | Control Panel Asy | Call | ||
| 24 | Side Mounting Bracket | 112-002 | $32.00 | ||
| 25 | Bottom Support Bracket | 112-001 | Call |

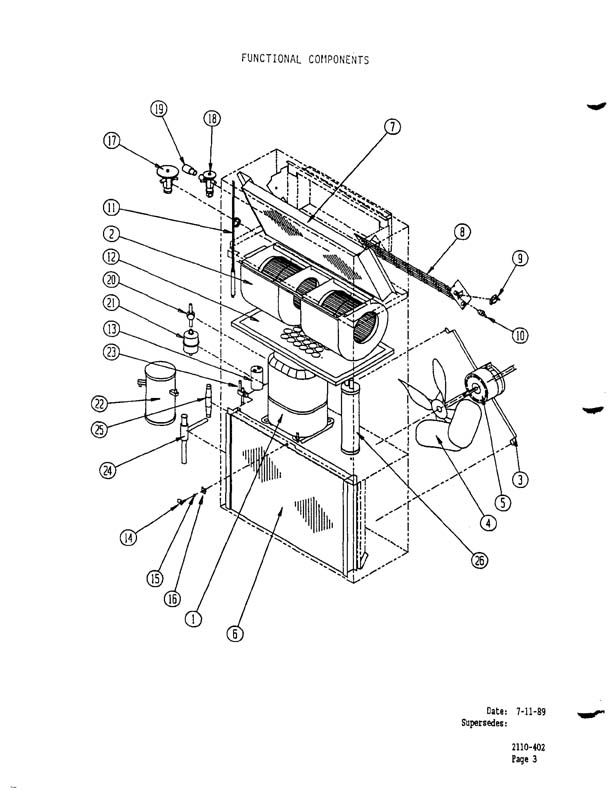

| 1 | Compressor H23B203ABCA | 8000-098 | 8000-874BX | $1,863.00 | |
| 8552-047BX | $28.00 | ||||
| 2 | Blower Assembly (Complete) | 900-038 | $761.00 | ||
| 3 | Motor Mount--Fan | 8200-023 | $16.00 | ||
| 4 | Fan Blade F10H8.7 | 5151-033 | 5151-033BX | $123.00 | |
| 5 | Motor--Fan 1/5hp | 8103-016 | 8103-028BX | $210.00 | |
| 6 | Condenser Coil | 5051-036 | Call | ||
| 7 | Evaporator Coil | 5060-048 | 5060-048BX | $416.00 | |
| 11 | Capillary Tube Assembly (37-1/2 x .064) | 800-0085 | $207.00 | ||
| 12 | Filter 14x25 | 7004-006 | $4.00 | ||
| 13 | Capacitor 25/370V | 8552-027 | 8552-083 | $15.00 | |
| 14 | 1/4 Turn Fastener | 1171-019 | $3.00 | ||
| 15 | Retainer Clip | 1171-021 | Call | ||
| 16 | Fastener Receptacle | 1171-020 | Call |

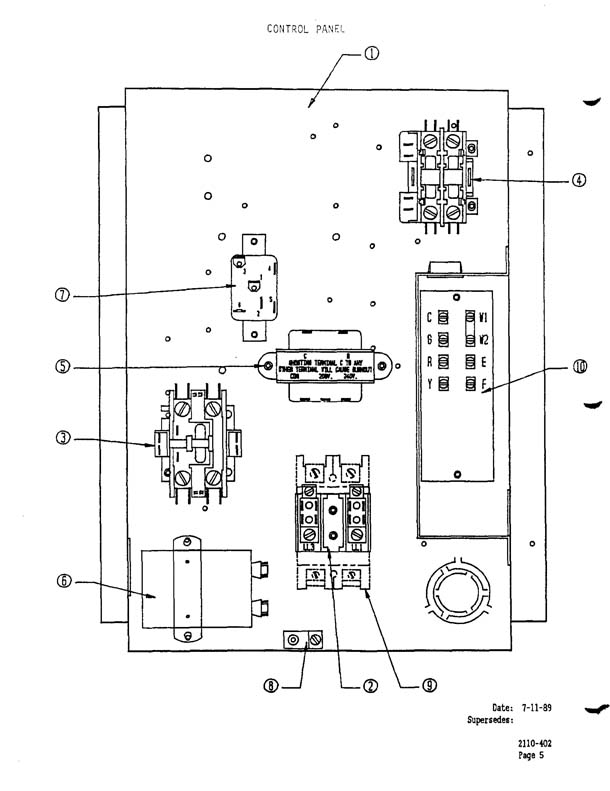

| NS | Wiring Diagram (PDF file download) | 4007-111 | - | ||
| NS | Control Panel Cover | 132-068 | $19.00 | ||
| 1 | Complete Control Panel Assembly | 902-0251 | Call | ||
| 3 | Contactor--Comp. 25A | 8401-007 | S8401-007 | $33.00 | |
| 5 | Transformer 40VA | 8407-034 | Call | ||
| 6 | Capacitor 5/370V | 8552-002 | 8552-002BX | $30.00 | |
| 7 | Relay--Blower | 8201-009 | 8201-009BX | $18.00 | |
| 8 | Ground Lug | 8611-006 | $3.00 | ||
| 9 | Circuit Breaker | 8615-012 | Call | ||
| 10 | Terminal Board 24V | 8607-018 | 8607-020BX | $19.00 |

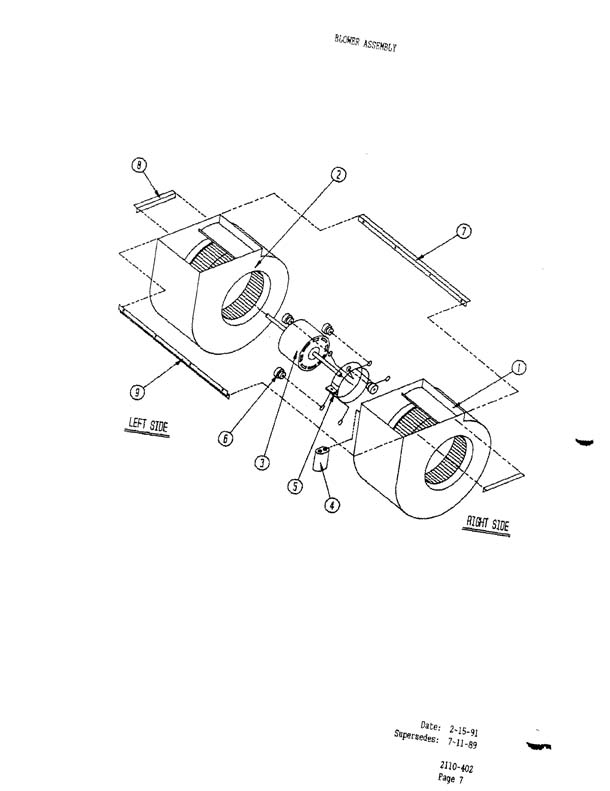

| 1 | Blower Housing And Wheel Assembly | 5152-051 | 5152-051BX | $335.00 | |
| 2 | Blower Housing And Wheel Assembly | 5152-052 | 5152-052BX | $335.00 | |
| 3 | Blower Motor | 8102-009 | 8102-009BX | $252.00 | |
| 4 | Capacitor 7.5/370V | 8552-004 | 8552-004BX | $16.00 | |
| 5 | Blower Motor Mount | 8200-031 | 8200-031BX | $57.00 | |
| 6 | Grommet | 5451-011 | $2.00 | ||
| 7 | Angle Back Brace | 104-505 | $36.00 | ||
| 8 | Angle | 104-001 | $3.00 | ||
| 9 | Offset | 102-300 | $12.00 |
| Heat kit not found |
- Manufactured: December, 1991
- Parts Manual: 2110-402(D).pdf
- Wiring Diagram: 4007-111(D).pdf
