Bard Parts Lookup Tool

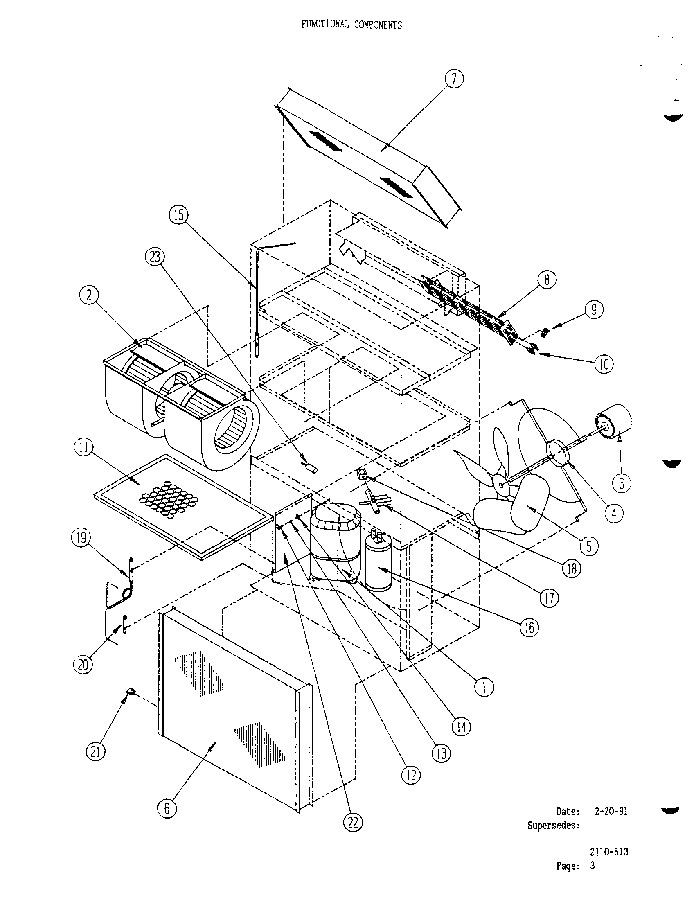

| `17 | Reversing Valve | 5650-006 | Call | ||
| 1 | Compressor AV5546K | 8000-082 | 8000-919BX | $2,214.00 | |
| 2 | Blower Assembly (Complete) | 900-119 | $981.00 | ||
| 3 | Condenser Motor | 8105-035 | 8105-039BX | $278.00 | |
| 4 | Motor Mount--Condenser | 8200-004 | 8200-004BX | $57.00 | |
| 5 | Fan Blade | 5151-027 | 5151-060BX | $142.00 | |
| 6 | Condenser Coil | 5051-029 | Call | ||
| 7 | Evaporator Coil | 5060-025 | Call | ||
| 11 | Air Filter 20 x 30 x 1 | 7004-016 | $17.00 | ||
| 12 | 1/4 Turn Fastener | 1171-019 | $3.00 | ||
| 13 | Retainer Washer | 1171-021 | Call | ||
| 14 | Receptacle | 1171-020 | Call | ||
| 15 | Cooling Capillary Assembly | 800-0131 | $63.00 | ||
| 16 | Accumulator | 5201-018 | $30.00 | ||
| 16 | Accumulator | 5202-018 | $178.00 | ||
| 18 | Reversing Valve Solenoid Coil | 5650-008 | Call | ||
| 19 | Heating Capillary Assembly | 800-0096 | $62.00 | ||
| 20 | Check Valve | 5651-036 | 5651S036BX | $67.00 | |
| 21 | Defrost Thermostat | 8408-016 | 8620-025 | $34.00 | |
| 23 | Low Pressure Switch | 8406-049 | S1804-0107 | $69.00 |
| NS | Wiring Diagram (PDF file download) | 4089-212 | - | ||
| NS | Control Panel Cover | 132-095 | $124.00 | ||
| 1 | Low Voltage Terminal Strip | 8607-019 | $14.00 | ||
| 2 | Circuit Breaker (45A) | 8615-021 | Call | ||
| 7 | Compressor Contactor | 8401-002 | 8401-002BX | $60.00 | |
| 10 | High Pressure Switch | 8406-010 | Call | ||
| 11 | Timer | 8612-012 | 8612-012BX | $287.00 | |
| 12 | Defrost Relay | 8201-047 | 8620-104 | $79.00 | |
| 14 | Blower Relay | 8201-008 | 8201-008BX | $18.00 | |
| 15 | Transformer | 8407-035 | 8407-068BX | $89.00 | |
| 16 | Ground Terminal | 8611-006 | $3.00 | ||
| 18 | Time Delay Relay (Compressor) | 8201-050 | 8201-050BX | $23.00 |

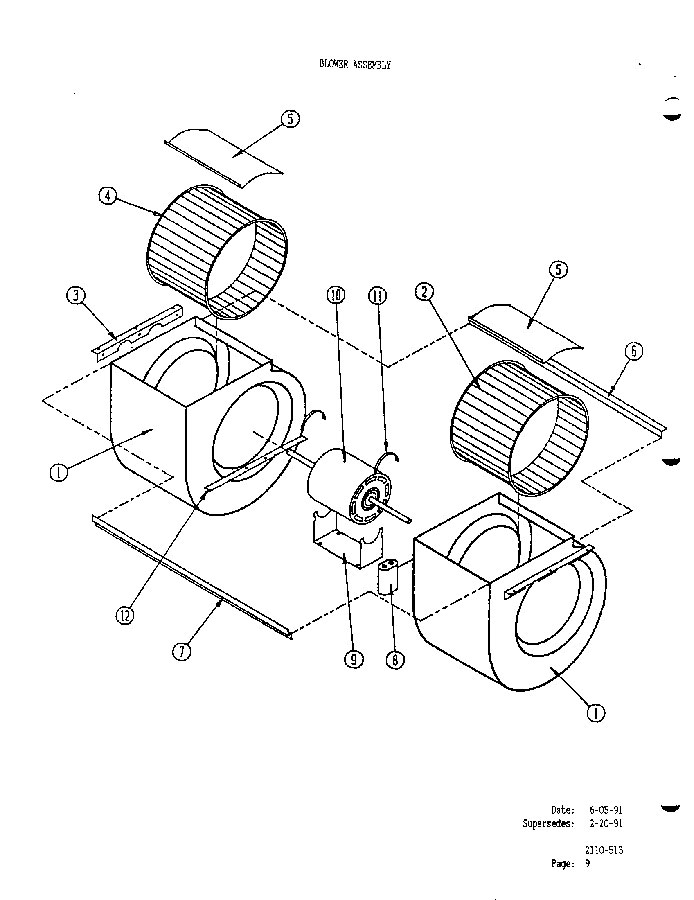

| 1 | Blower Housing | 151-068 | 151-101BX | $151.00 | |
| 2 | Blower Wheel 10-8, CW | 5152-011 | 5152-011BX | $119.00 | |
| 3 | Blower Angle | 104-791 | $8.00 | ||
| 4 | Blower Wheel 10-8, CCW | 5152-012 | 5152-012BX | $119.00 | |
| 5 | Diffuser | 144-126 | 144-166 | $7.00 | |
| 6 | Back Brace | 104-802 | $29.00 | ||
| 7 | Front Offset | 102-389 | 103-389BX | $57.00 | |
| 8 | Capacitor 10/370 | 8552-005 | 8552-005BX | $31.00 | |
| 9 | Motor Mount--Cradle | 128-002 | $20.00 | ||
| 10 | Motor | 8106-023 | 8106-023BX | $316.00 | |
| 11 | Motor Mount Latch | 8200-018 | Call | ||
| 12 | Motor Support Angle | 104-788 | $21.00 |
| Heat kit not found |
- Manufactured: December, 1992
- Parts Manual: 2110-513(A).pdf
.1.jpg)
.2.jpg)
.4.jpg)
