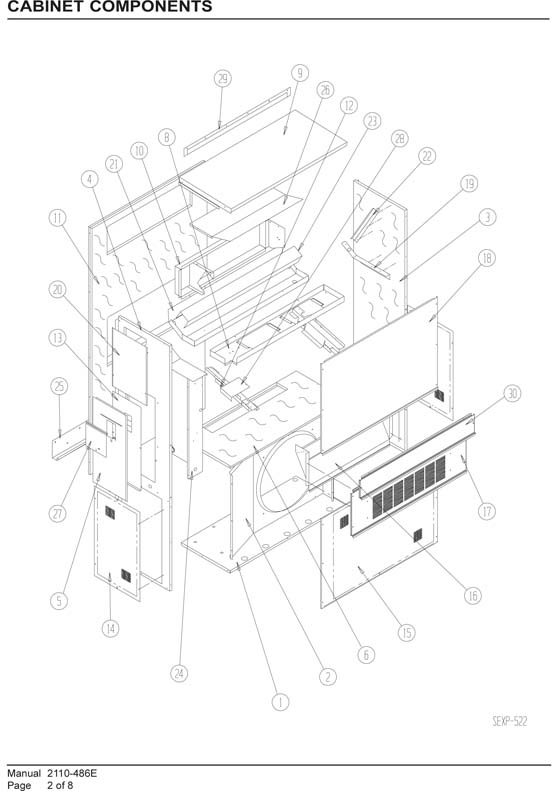

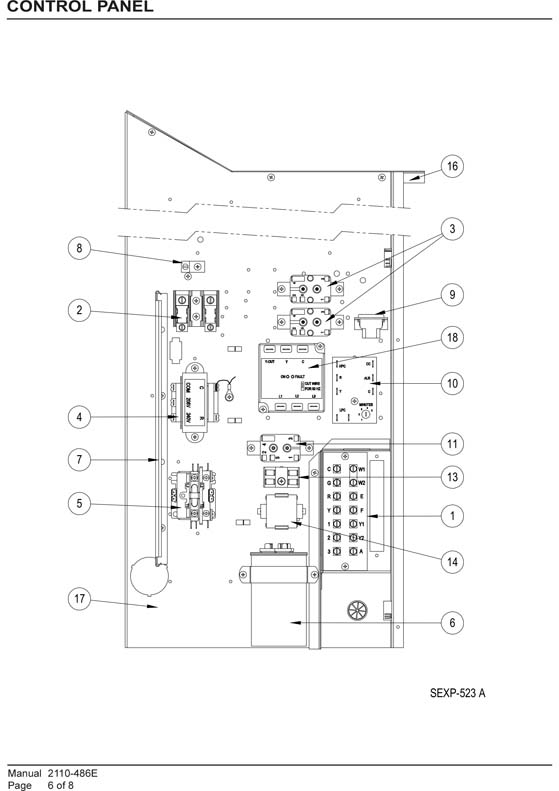

| NS | Filter Drier | 5201-001 | 5201-001BX | $100.00 | |
| NS | High Pressure Switch (Flare) | 1804-0385 | 1804-0462 | $96.00 | |
| NS | Low Pressure Switch (Flare) | 1804-0386 | 1804-0386BX | $144.00 | |
| NS | Low Ambient Control (Flare) (1) | CMA-28 | $95.00 | ||
| 1 | Compressor | 8000-313 | 8000-313BX | $881.00 | |
| 2 | Blower Assembly | S900-291 | 900-291BX | $861.00 | |
| 3 | Fan Motor Mount | 8200-001 | 8200-001BX | $94.00 | |
| 4 | Fan Blade | 5151-033 | 5151-033BX | $123.00 | |
| 5 | Condensor Motor | 8103-016 | 8103-028BX | $210.00 | |
| 6 | Condensor Coil | 5051-092BX | $401.00 | ||
| 7 | Distributor | 5625-104 | Call | ||
| 8 | Evaporator Coil | 5060-066BX | $404.00 | ||
| 9 | Air Filter 1" Throw-Away | 7004-011 | $8.00 | ||
| 9 | Air Filter 1" Washable (1) | 7003-032 | $103.00 | ||
| 9 | Air Filter 2" Pleated (1) | 7004-025 | $17.00 | ||
| 10 | 1/4" Turn Fastener | 1171-022 | 1171-022BX | $28.00 | |
| 11 | 1/4" Turn Retainer | 1171-024 | $3.00 | ||
| 12 | 1/4" Receptacle | 1171-023 | $5.00 |
| NS | Circuit Breaker 20A 2 Pole (Opt) (1) | 8615-035 | 8615-035BX | $46.00 | |
| NS | Wiring Diagram (PDF file download) | 4095-143 | - | ||
| 1 | Low Voltage Terminal Strip | 8607-024 | 8607-024BX | $23.00 | |
| 2 | Terminal Block 2 Pole | 8607-013 | 8607-013BX | $24.00 | |
| 3 | Blower Control Relay | 8201-009 | 8201-009BX | $18.00 | |
| 4 | Transformer | 8407-034 | Call | ||
| 5 | Compressor Contactor | 8401-007 | S8401-007 | $33.00 | |
| 6 | Compressor Capacitor | 8552-046 | S8552-046 | $22.00 | |
| 7 | Wire Shield | 135-122 | $18.00 | ||
| 8 | Ground Terminal | 8611-006 | $3.00 | ||
| 9 | 6-Pin Connector | 3000-968 | $5.00 | ||
| 10 | Compressor Control Module (Opt) | 8201-088 | 8201-176BX | $99.00 | |
| 11 | Alarm Relay (Optional) | 8201-062 | S8201-062 | $22.00 | |
| 13 | Terminal Block (Optional) (Shown) | 8607-017 | 8607-017BX | $16.00 | |
| 14 | Start Device (PTCR) (Optional) | 8551-004 | 8551-004BX | $74.00 | |
| 16 | Control Panel Top | 117Y137 | Call | ||
| 17 | Control Panel | 117Y123 | $56.00 |

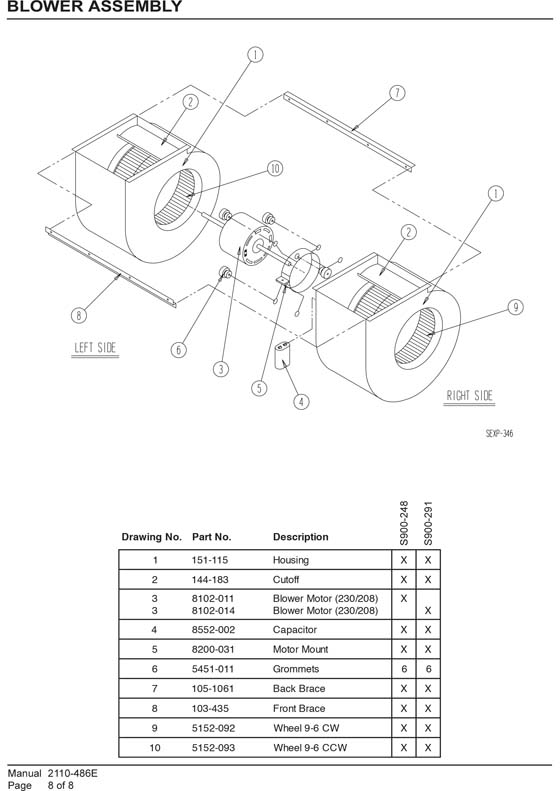

| 1 | Housing | 151-115 | 151-115BX | $136.00 | |
| 2 | Cutoff | 144-183 | $7.00 | ||
| 3 | Blower Motor (230/208) | 8102-014 | 8102-014BX | $203.00 | |
| 4 | Capacitor | 8552-002 | 8552-002BX | $30.00 | |
| 5 | Motor Mount | 8200-031 | 8200-031BX | $57.00 | |
| 6 | Grommets | 5451-011 | $2.00 | ||
| 7 | Back Brace | 105-1061 | 105-1061BX | $14.00 | |
| 8 | Front Brace | 103-435 | $15.00 | ||
| 9 | Wheel 9-6 CW | 5152-092 | 5152-092BX | $109.00 | |
| 10 | Wheel 9-6 CCW | 5152-093 | 5152-093BX | $109.00 |
| Heat kit not found |
- Manufactured: December, 2010
- Parts Manual: 2110-486(E).pdf
- Wiring Diagram: 4095-143(A).pdf
