Bard Parts Lookup Tool
| NS | Filter Drier | 5201-002 | 5201-023BX | $64.00 | |
| NS | Low Ambient Control | CMA-28 | $95.00 | ||
| NS | High Pressure Switch (Flare) | 1804-0385 | 1804-0462 | $96.00 | |
| NS | Low Pressure Switch (Flare) | 1804-0386 | 1804-0386BX | $144.00 | |

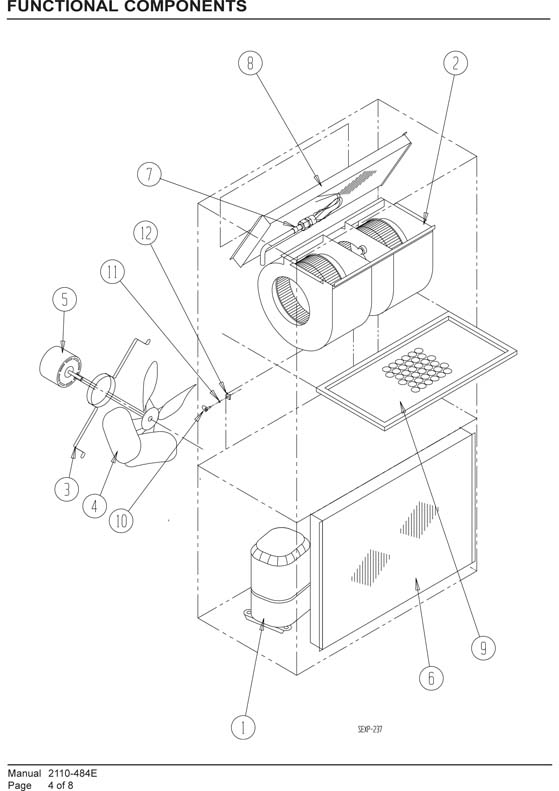

| 1 | Compressor | 8000-345 | 8000-345BX | $1,358.00 | |
| 2 | Blower Assembly | S900-184 | 900-184BX | $747.00 | |
| 3 | Fan Motor Mount | 8200-004 | 8200-004BX | $57.00 | |
| 4 | Fan Blade | 5151-027 | 5151-060BX | $142.00 | |
| 5 | Condenser Motor | 8105-030 | 8105-071BX | $227.00 | |
| 6 | Condenser Coil | 5051-152BX | $692.00 | ||
| 7 | Distributor Assembly | 800-0369 | S800-0369 | $117.00 | |
| 8 | Evaporator Coil | 5060-070BX | 5060-138BX | $824.00 | |
| 9 | Air Filter 1" Throw-Away | 7004-016 | $17.00 | ||
| 9 | Air Filter 1" Washable | 7003-030 | $95.00 | ||
| 9 | Air Filter 2" Pleated | 7004-027 | $29.00 | ||
| 10 | 1/4 Turn Fastener | 1171-022 | 1171-022BX | $28.00 | |
| 11 | 1/4 Turn Retainer | 1171-024 | $3.00 | ||
| 12 | 1/4 Turn Receptacle | 1171-023 | $5.00 |
| NS | Toggle Disconnect (2) | 8615-067 | Call | ||
| NS | Wiring Diagram (PDF file download) | 4095-318 | - | ||

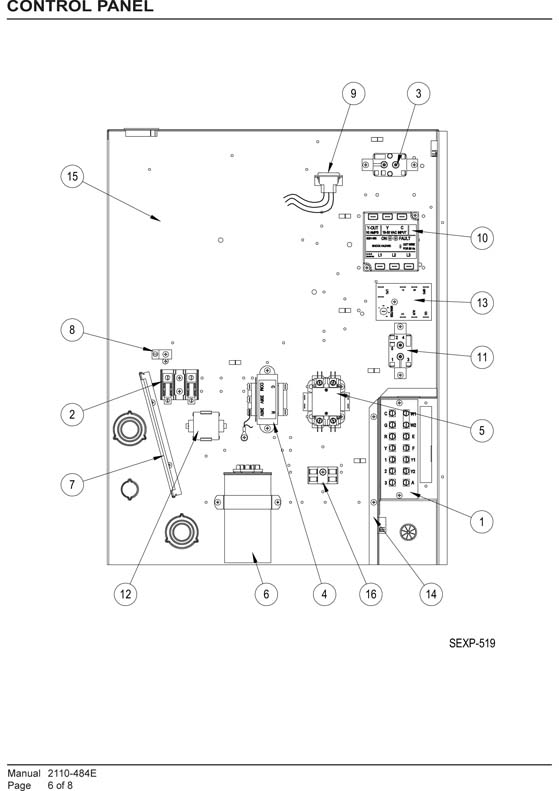

| 1 | Low Voltage Terminal Strip | 8607-024 | 8607-024BX | $23.00 | |
| 2 | Terminal Block 3 Pole | 8607-014 | 8607-014BX | $29.00 | |
| 2 | Phenolic Insulator | 8607-015 | 8607-015BX | $14.00 | |
| 3 | Blower Control Relay | 8201-032 | 8201-032BX | $19.00 | |
| 4 | Transformer | 8407-042 | 8407-069BX | $71.00 | |
| 5 | Compressor Contactor | 8401-002 | 8401-002BX | $60.00 | |
| 6 | Outdoor Motor Capacitor | 8552-026 | 8552-026BX | $20.00 | |
| 7 | Wire Shield | 135-130 | $10.00 | ||
| 8 | Ground Terminal | 8611-006 | $3.00 | ||
| 9 | 6 Pin Connector | 3000-978 | Call | ||
| 10 | Phase Monitor | 8201-085 | 8201-174BX | $109.00 | |
| 11 | Alarm Relay (Optional) | 8201-062 | S8201-062 | $22.00 | |
| 13 | Compressor Control Module | 8201-088 | 8201-176BX | $99.00 | |
| 14 | Low Voltage Box | 117-139 | 117X139 | $21.00 | |
| 15 | Control Panel | 117-143 | $56.00 | ||
| 16 | Terminal Block (Optional) | 8607-017 | 8607-017BX | $16.00 |

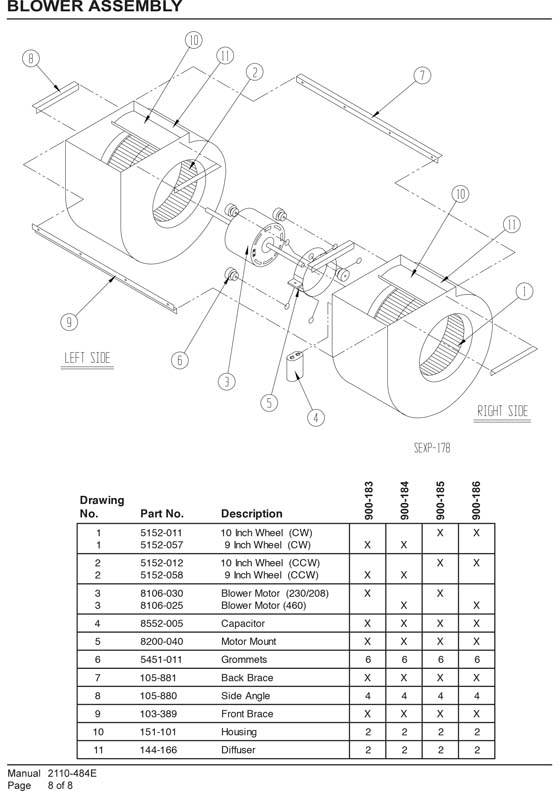

| 1 | 9 Inch Wheel (CW) | 5152-057 | 5152-057BX | $117.00 | |
| 2 | 9 Inch Wheel (CCW) | 5152-058 | 5152-058BX | $117.00 | |
| 3 | Blower Motor (460) | 8106-025 | 8106-025BX | $279.00 | |
| 4 | Capacitor | 8552-005 | 8552-005BX | $31.00 | |
| 5 | Motor Mount | 8200-040 | 8200-040BX | $59.00 | |
| 6 | Grommets | 5451-011 | $2.00 | ||
| 7 | Back Brace | 105-881 | $6.00 | ||
| 8 | Side Angle | 105-880 | $6.00 | ||
| 9 | Front Brace | 103-389 | 103-389BX | $57.00 | |
| 10 | Housing | 151-101 | 151-101BX | $151.00 | |
| 11 | Diffuser | 144-166 | $7.00 |
| Heat kit not found |
- Manufactured: December, 2012
- Parts Manual: 2110-484(E).pdf
- Wiring Diagram: 4095-318(D).pdf
