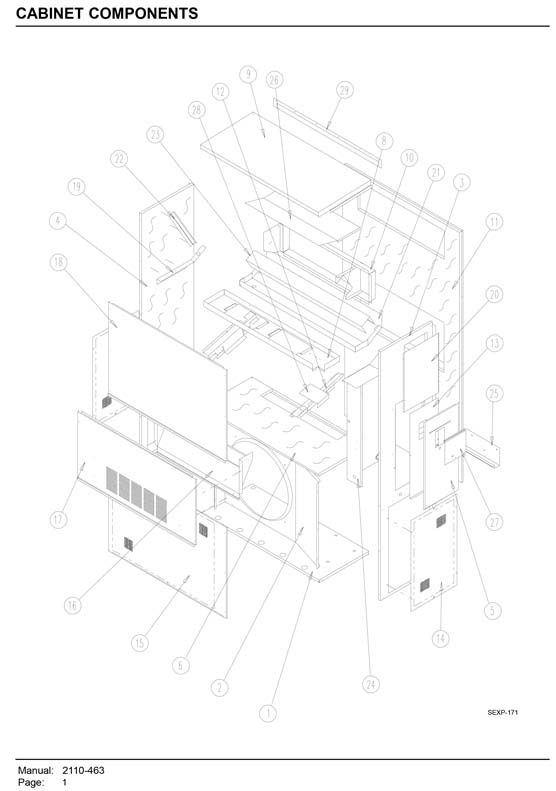

| NS | High Pressure Switch (Flare) | 1804-0106 | S1804-0106 | $95.00 | |
| NS | Low Pressure Switch (Flare) (Optional) | 1804-0107 | S1804-0107 | $69.00 | |
| NS | Low Ambient Control (Flare) (Optional) | CMA-6 | $95.00 | ||

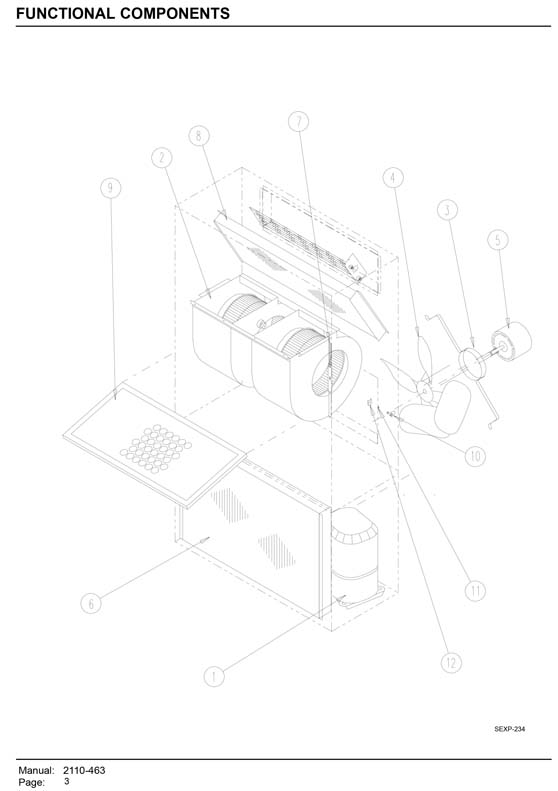

| 1 | Compressor | 8000-254 | 8000-892 | $1,476.00 | |
| 2 | Blower Assembly | S900-248 | 900-326BX | $555.00 | |
| 3 | Fan Motor Mount | 8200-001 | 8200-001BX | $94.00 | |
| 4 | Fan Blade | 5151-033 | 5151-033BX | $123.00 | |
| 5 | Condenser Motor | 8103-016 | 8103-028BX | $210.00 | |
| 6 | Condenser Coil | 5051-071 | 5051-154BX | $504.00 | |
| 7 | Cooling Capillary Assembly | 800-0198 | 800-0198BX | $127.00 | |
| 8 | Evaporator Coil | 5060-066 | 5060-066BX | $404.00 | |
| 9 | Air Filter 1" Throw Away | 7004-011 | $8.00 | ||
| 9 | Air Filter 1" Washable (Optional) | 7003-032 | $103.00 | ||
| 9 | Air Filter 2" Pleated (Optional) | 7004-025 | $17.00 | ||
| 10 | 1/4" Turn Fastener | 1171-002 | Call | ||
| 11 | 1/4" Turn Retainer | 1171-024 | $3.00 | ||
| 12 | 1/4" Receptacle | 1171-023 | $5.00 |
| NS | Wiring Diagram (PDF file download) | 4095-128 | - | ||

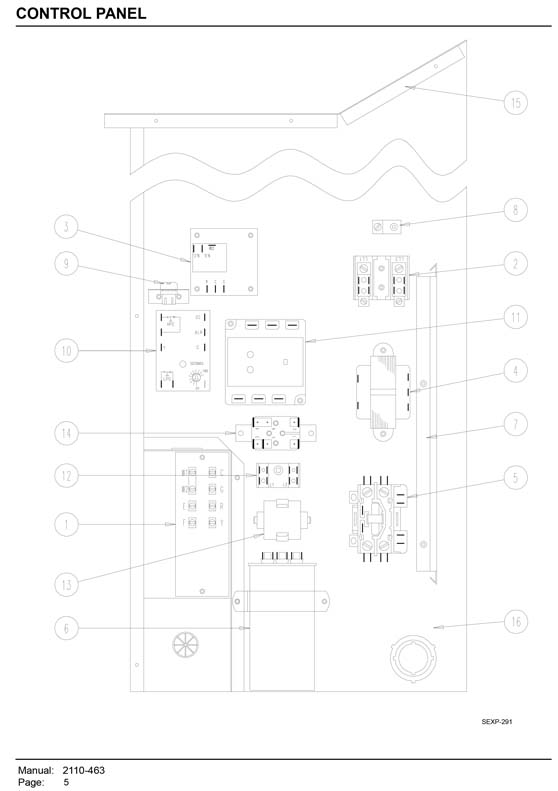

| 1 | Low Voltage Terminal Strip | 8607-020 | 8607-020BX | $19.00 | |
| 2 | Terminal Block 2 Pole | 8607-013 | 8607-013BX | $24.00 | |
| 3 | Blower Control | 8201-056 | S8201-056 | $35.00 | |
| 4 | Transformer | 8407-034 | Call | ||
| 5 | Compressor Contactor | 8401-007 | S8401-007 | $33.00 | |
| 6 | Compressor Capacitor 35/5-370 | 8552-048 | 8552-048BX | $30.00 | |
| 7 | Wire Shield | 135-122 | $18.00 | ||
| 8 | Ground Terminal | 8611-006 | $3.00 | ||
| 9 | 6 Pin Connector | 3000-968 | $5.00 | ||
| 10 | Compressor Lockout Module | 8201-088 | 8201-176BX | $99.00 | |
| 12 | Terminal Block (Optional) (Shown) | 8607-017 | 8607-017BX | $16.00 | |
| 13 | Start Device (PTCR) (Optional) | 8551-005 | 8551-004BX | $74.00 | |
| 14 | Alarm Relay (Optional) | 8201-062 | S8201-062 | $22.00 | |
| 15 | Control Panel Top | 117-137 | 117X137BX | $70.00 | |
| 16 | Control Panel | 117-123 | 117X123 | $57.00 |

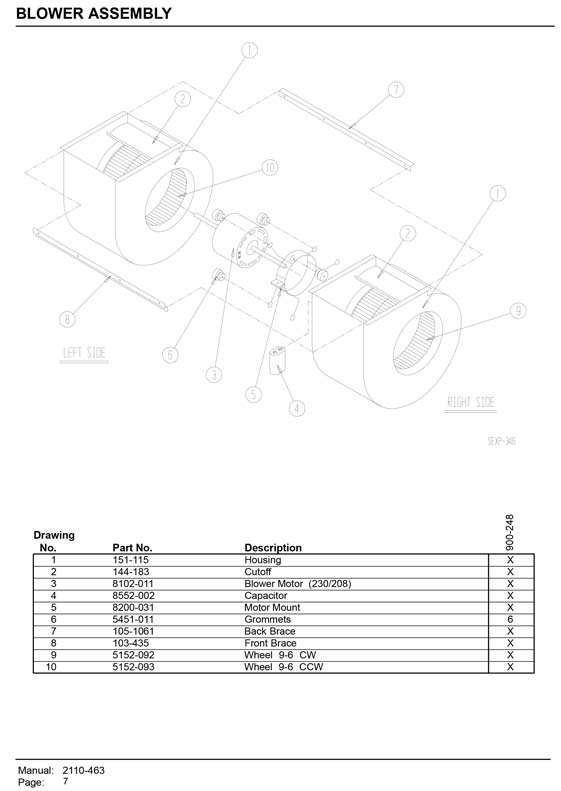

| 1 | Housing | 151-115 | 151-115BX | $136.00 | |
| 2 | Cutoff | 144-183 | $7.00 | ||
| 3 | Blower Motor (230/208) | 8102-011 | 8102-016BX | $263.00 | |
| 4 | Capacitor | 8552-002 | 8552-002BX | $30.00 | |
| 5 | Motor Mount | 8200-031 | 8200-031BX | $57.00 | |
| 6 | Grommets | 5451-011 | $2.00 | ||
| 7 | Back Brace | 105-1061 | 105-1061BX | $14.00 | |
| 8 | Front Brace | 103-435 | $15.00 | ||
| 9 | Wheel 9-6 CW | 5152-092 | 5152-092BX | $109.00 | |
| 10 | Wheel 9-6 CCW | 5152-093 | 5152-093BX | $109.00 |
| EHWA02A-A08 (PDF file download) | |||||
| Heat Strip 8KW | 8604-090 | 8604-090BX | $141.00 | ||
| Heater Control Base | 127X210 | 127X210BX | $76.00 | ||
| Limit Control | 8402-074 | 8402-074BX | $35.00 | ||
| Thermal Cutoff | 8402-093 | 8402-093BX | $29.00 | ||
| Circuit Breaker 45A | 8615-039 | 8615-039BX | $47.00 | ||
| Heat Contactor | 8401-006 | 8401-006BX | $42.00 | ||
- Manufactured: December, 2005
- Parts Manual: 2110-463(A).pdf
- Wiring Diagram: 4095-128(C).pdf
