Bard Parts Lookup Tool
| NS | Low Pressure Switch (Flare) (Optional) | 1804-0107 | 1804-0107BX | $89.00 | |
| NS | Low Ambient Control (Flare) (Optional) | CMA-6 | $95.00 | ||

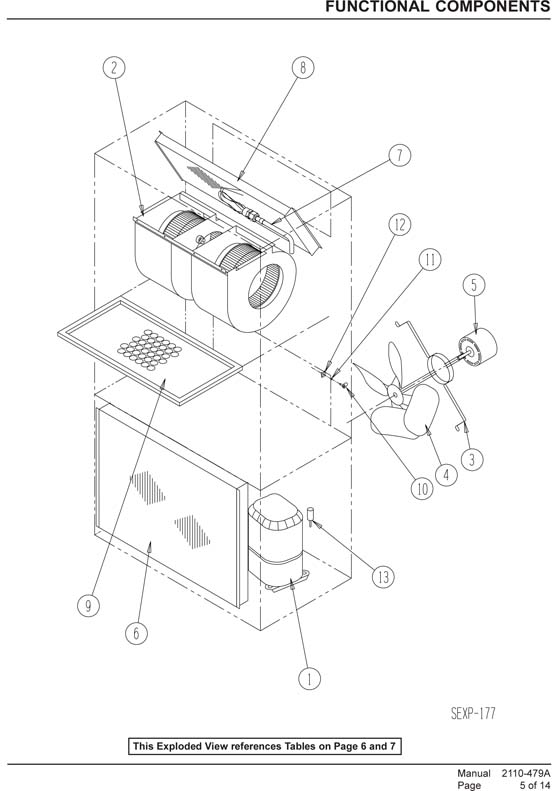

| 1 | Compressor | 8000-163 | 8000-908 | $3,062.00 | |
| 2 | Blower Assembly | S900-242 | 900-242BX | $1,004.00 | |
| 3 | Fan Motor Mount | 8200-004 | 8200-004BX | $105.00 | |
| 4 | Fan Blade | 5151-027 | 5151-060BX | $142.00 | |
| 5 | Condenser Motor | 8105-039 | 8105-039BX | $278.00 | |
| 6 | Condenser Coil | 5051-078BX | 5051-163BX | $870.00 | |
| 7 | Distributor Assembly | 800-0313 | $67.00 | ||
| 8 | Evaporator Coil | 5060-070BX | 5060-138BX | $990.00 | |
| 9 | Air Filter 1" Throw-Away | 7004-016 | $22.00 | ||
| 9 | Air Filter 1" Washable | 7003-030 | $110.00 | ||
| 9 | Air Filter 2" Pleated | 7004-027 | $35.00 | ||
| 10 | 1/4 Turn Fastener | 1171-022 | 1171-022BX | $28.00 | |
| 11 | 1/4 Turn Retainer | 1171-024 | $3.00 | ||
| 12 | 1/4 Receptacle | 1171-023 | $5.00 | ||
| 13 | High Pressure Switch (Flare) | 1804-0106 | 1804-0106BX | $105.00 |
| NS | Circuit Breaker 30A 3 Pole (2) | 8615-052 | 8615-052BX | $109.00 | |
| NS | Wiring Diagram (PDF file download) | 4095-227 | - | ||
| 1 | Low Voltage Terminal Strip | 8607-020 | 8607-020BX | $19.00 | |
| 2 | Terminal Block 3 Pole | 8607-014 | 8607-014BX | $29.00 | |
| 3 | Blower Control | 8201-056 | 8201-056BX | $36.00 | |
| 4 | Transformer | 8407-034 | 8407-034BX | $27.00 | |
| 5 | Compressor Contactor | 8401-002 | 8401-002BX | $63.00 | |
| 7 | Wire Shield | 135-130 | $10.00 | ||
| 8 | Ground Terminal | 8611-006 | $3.00 | ||
| 9 | 6 Pin Connector | 3000-1017 | $8.00 | ||
| 10 | Phase Monitor | 8201-085 | 8201-174BX | $109.00 | |
| 11 | Alarm Relay (Optional) | 8201-062 | 8201-062BX | $22.00 | |
| 13 | Compressor Control Module | 8201-088 | 8201-176BX | $99.00 | |
| 14 | Low Voltage Box | 117X139 | $28.00 | ||
| 15 | Control Panel | 117X143 | $56.00 | ||
| 16 | Terminal Block (Optional) | 8607-017 | 8607-017BX | $16.00 |

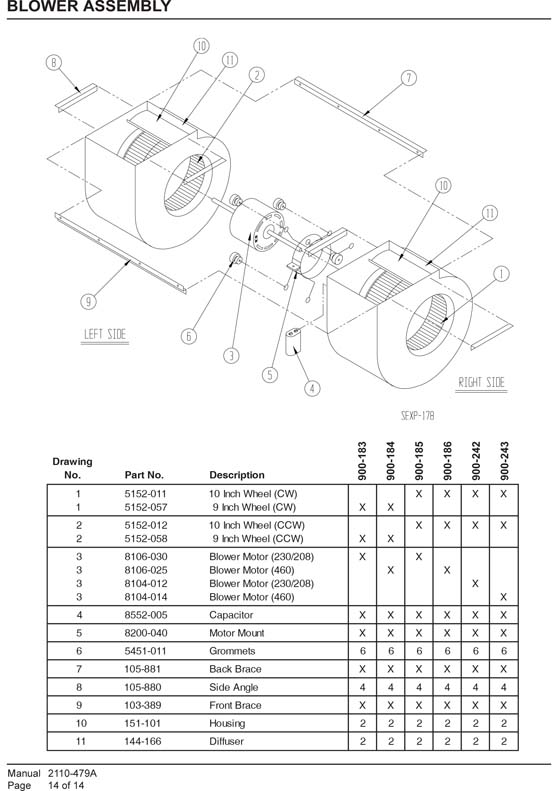

| 1 | 10 Inch Wheel (CW) | 5152-011 | 5152-011BX | $119.00 | |
| 2 | 10 Inch Wheel (CCW) | 5152-012 | 5152-012BX | $119.00 | |
| 3 | Blower Motor (230/208) | 8104-012 | 8104-012BX | $291.00 | |
| 4 | Capacitor | 8552-005 | 8552-005BX | $31.00 | |
| 5 | Motor Mount | 8200-040 | 8200-040BX | $59.00 | |
| 6 | Grommets | 5451-011 | $2.00 | ||
| 7 | Back Brace | 105-881 | 📞 Call | ||
| 8 | Side Angle | 105-880 | $6.00 | ||
| 9 | Front Brace | 103-389 | 103-389BX | $57.00 | |
| 10 | Housing | 151-101 | 151-101BX | $164.00 | |
| 11 | Diffuser | 144-166 | 144-166BX | $69.00 |
| Heat kit not found |
- Manufactured: December, 2008
- Parts Manual: 2110-479(A).pdf
- Wiring Diagram: 4095-227(E).pdf
.1.jpg)
.2.jpg)
.3.jpg)
.4.jpg)
