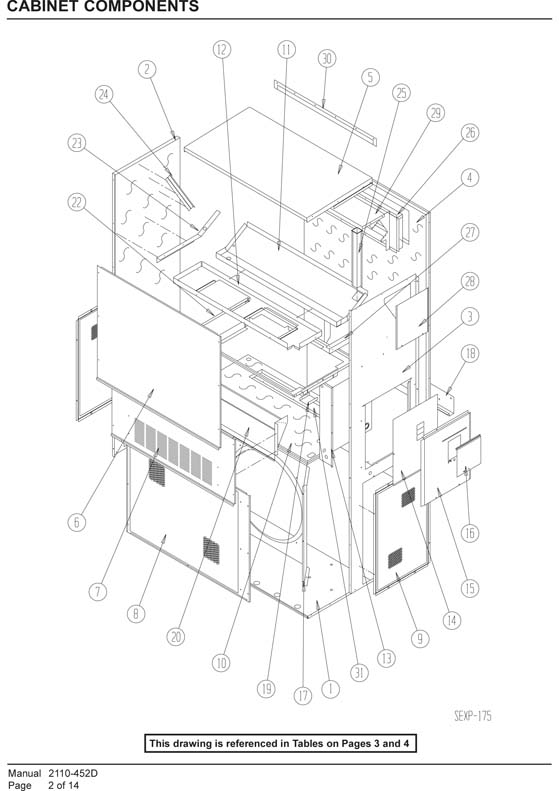

Bard Parts Lookup Tool

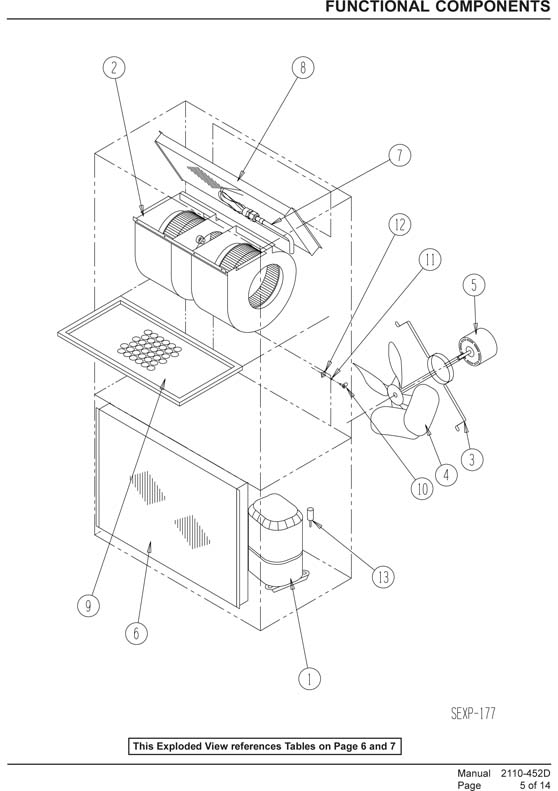

| NS | Low Ambient Control (Flare) (Optional) | CMA-6 | $95.00 | ||
| NS | Low Pressure Switch (Flare) (Optional) | 1804-0107 | S1804-0107 | $69.00 | |
| 1 | Compressor | 8000-155 | 8000-814BX | $3,028.00 | |
| 2 | Blower Assembly | S900-186 | 900-186BX | $667.00 | |
| 3 | Fan Motor Mount | 8200-004 | 8200-004BX | $57.00 | |
| 4 | Fan Blade | 5151-027 | 5151-060BX | $142.00 | |
| 5 | Condenser Motor | 8105-030 | 8105-071BX | $227.00 | |
| 6 | Condenser Coil | 5051-074BX | 5051-083BX | $910.00 | |
| 7 | Cool. Cap. Assy.(S/N before M95) | 800-0209 | $50.00 | ||
| 7 | Distributor Assy.(S/N starting M95) | 800-0234 | 800-0234BX | $123.00 | |
| 8 | Evap. Coil (S/N before M95) | 5060-071BX | $1,313.00 | ||
| 8 | Evap. Coil (S/N starting M95) | 5060-082BX | $827.00 | ||
| 9 | Air Filter 1" Throw-Away | 7004-016 | $17.00 | ||
| 9 | Air Filter 1" Washable | 7003-030 | $95.00 | ||
| 9 | Air Filter 2" Pleated | 7004-027 | $29.00 | ||
| 10 | 1/4 Turn Fastener | 1171-022 | 1171-022BX | $28.00 | |
| 11 | 1/4 Turn Retainer | 1171-024 | $3.00 | ||
| 13 | High Pressure Switch (Flare) (Optional) | 1804-0106 | S1804-0106 | $95.00 |
| NS | Pull Disconnect (2) | WMPD-01C | Call | ||
| NS | Wiring Diagram (PDF file download) | 4095-318 | - | ||
| 1 | Low Voltage Terminal Strip | 8607-020 | 8607-020BX | $19.00 | |
| 2 | Terminal Block 3 Pole | 8607-014 | 8607-014BX | $29.00 | |
| 2 | Phenolic Insulator | 8607-015 | 8607-015BX | $14.00 | |
| 3 | Blower Relay | 8201-032 | 8201-032BX | $19.00 | |
| 4 | Transformer | 8407-042 | 8407-069BX | $71.00 | |
| 5 | Compressor Contactor | 8401-002 | 8401-002BX | $60.00 | |
| 6 | Outdoor Motor Capacitor | 8552-026 | 8552-026BX | $20.00 | |
| 7 | Wire Shield | 135-130 | $10.00 | ||
| 8 | Ground Terminal | 8611-006 | $3.00 | ||
| 9 | 6 Pin Connector | 3000-1017 | $8.00 | ||
| 10 | Phase Monitor | 8201-085 | 8201-174BX | $109.00 | |
| 11 | Alarm Relay (Optional) | 8201-062 | S8201-062 | $22.00 | |
| 13 | Compressor Control Module | 8201-088 | 8201-176BX | $99.00 | |
| 14 | Low Voltage Box | 117X139 | $21.00 | ||
| 15 | Control Panel | 117X143 | $56.00 | ||
| 16 | Terminal Block (Optional) | 8607-017 | 8607-017BX | $16.00 |

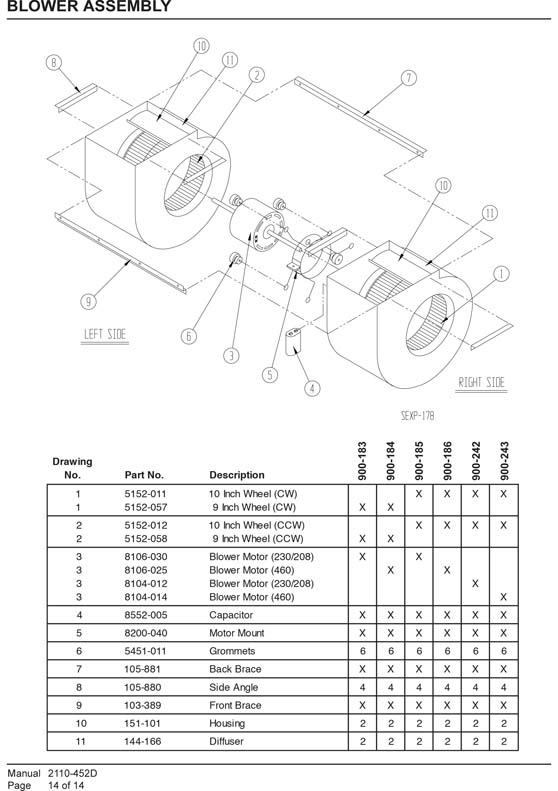

| 1 | 10 Inch Wheel (CW) | 5152-011 | 5152-011BX | $119.00 | |
| 2 | 10 Inch Wheel (CCW) | 5152-012 | 5152-012BX | $119.00 | |
| 3 | Blower Motor (460) | 8106-025 | 8106-025BX | $279.00 | |
| 4 | Capacitor | 8552-005 | 8552-005BX | $31.00 | |
| 5 | Motor Mount | 8200-040 | 8200-040BX | $59.00 | |
| 6 | Grommets | 5451-011 | $2.00 | ||
| 7 | Back Brace | 105-881 | $6.00 | ||
| 8 | Side Angle | 105-880 | $6.00 | ||
| 9 | Front Brace | 103-389 | 103-389BX | $57.00 | |
| 10 | Housing | 151-101 | 151-101BX | $151.00 | |
| 11 | Diffuser | 144-166 | $7.00 |
| EHWA05A-C09 (PDF file download) | |||||
| Heat Strip 9KW | 8604-101 | 8604-101BX | $178.00 | ||
| Heater Control Base | 127-211 | Call | |||
| Limit Control | 8402-074 | 8402-074BX | $35.00 | ||
| Thermal Cutoff | 8402-094 | 8402-094BX | $43.00 | ||
| Disconnect Switch | 8615-067 | Call | |||
| Heat Contactor | 8401-002 | 8401-002BX | $60.00 | ||
- Manufactured: December, 2008
- Parts Manual: 2110-452(D).pdf
- Wiring Diagram: 4095-318(D).pdf
