Bard Parts Lookup Tool
| NS | High Pressure Switch (Flare) (Optional) | 1804-0106 | S1804-0106 | $95.00 | |
| NS | Low Pressure Switch (Flare) (Optional) | 1804-0107 | S1804-0107 | $69.00 | |
| NS | Low Ambient Control (Flare) (Optional) | CMA-6 | $95.00 | ||
| NS | Crankcase Heater 230 V | 8605-012 | 8605-017BX | $76.00 | |

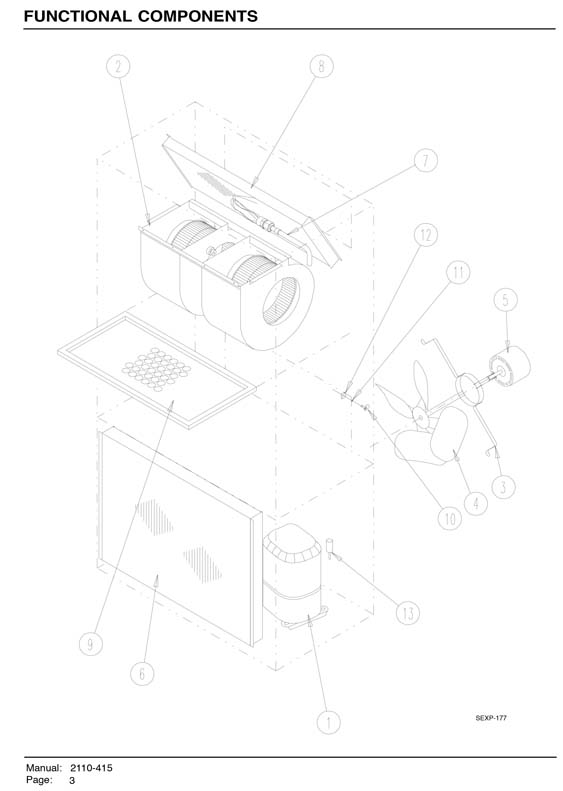

| 1 | Compressor | 8000-228 | 8000-931 | $2,745.00 | |
| S8552-058 | $41.00 | ||||
| 2 | Blower Assembly | S900-185 | 900-185BX | $665.00 | |
| 3 | Fan Motor Mount | 8200-004 | 8200-004BX | $57.00 | |
| 4 | Fan Blade | 5151-027 | 5151-060BX | $142.00 | |
| 5 | Condenser Motor | 8105-039 | 8105-039BX | $278.00 | |
| 6 | Condenser Coil | 5051-088 | 5051-088BX | $1,107.00 | |
| 7 | Expansion Valve | 905-0226 | $272.00 | ||
| 8 | Evaporator Coil | 5060-082 | 5060-082BX | $827.00 | |
| 9 | Air Filter 1" Throw-Away | 7004-016 | $17.00 | ||
| 9 | Air Filter 1" Washable | 7003-030 | $95.00 | ||
| 9 | Air Filter 2" Pleated | 7004-027 | $29.00 | ||
| 10 | 1/4" Turn Fastener | 1171-022 | 1171-022BX | $28.00 | |
| 11 | 1/4" Turn Retainer | 1171-024 | $3.00 | ||
| 12 | 1/4" Receptacle | 1171-023 | $5.00 |
| NS | Wiring Diagram (PDF file download) | 4095-129 | - | ||

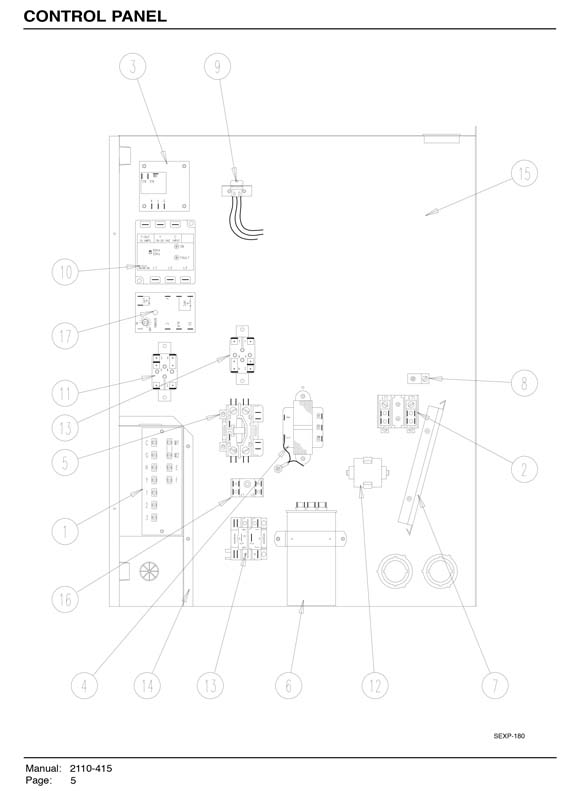

| 1 | Low Voltage Terminal Strip | 8607-020 | 8607-020BX | $19.00 | |
| 2 | Terminal Block 2 Pole | 8607-013 | 8607-013BX | $24.00 | |
| 3 | Blower Control | 8201-056 | S8201-056 | $35.00 | |
| 4 | Transformer | 8407-034 | Call | ||
| 5 | Compressor Contactor | 8401-025 | 8401-025BX | $44.00 | |
| 6 | Compressor Capacitor | 8552-059 | 8552-059BX | $43.00 | |
| 7 | Wire Shield | 135-122 | $18.00 | ||
| 8 | Ground Terminal | 8611-006 | $3.00 | ||
| 9 | 6 Pin Connector | 3000-978 | Call | ||
| 11 | Alarm Relay(Optional) | 8201-062 | S8201-062 | $22.00 | |
| 12 | Start Kit (Optional) | 8552-003 | Call | ||
| 13 | Crankcase Heat Relay | 8201-009 | 8201-009BX | $18.00 | |
| 14 | Low Voltage Box | 117X139 | $21.00 | ||
| 15 | Control Panel | 117X143 | $56.00 | ||
| 16 | Terminal Block (Optional) | 8607-017 | 8607-017BX | $16.00 | |
| 17 | Compressor Control Module | 8201-081 | 8620-167 | $102.00 |

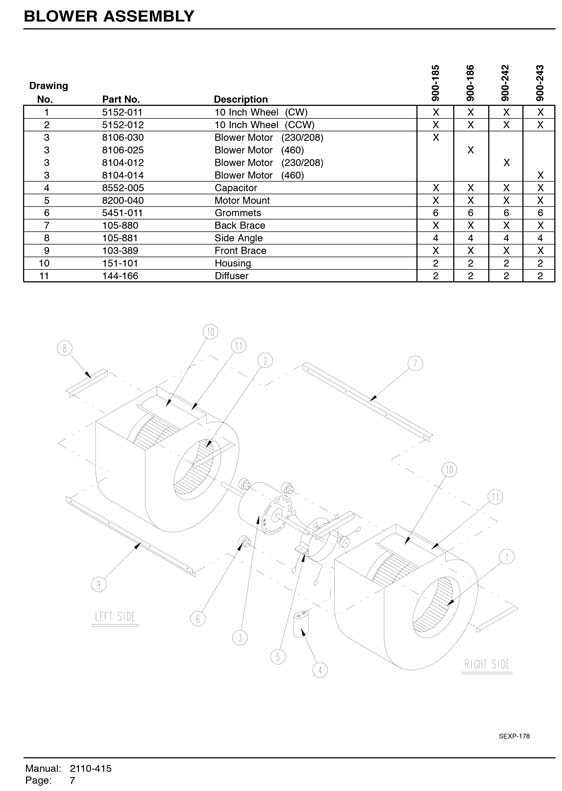

| 1 | 10 Inch Wheel (CW) | 5152-011 | 5152-011BX | $119.00 | |
| 2 | 10 Inch Wheel (CCW) | 5152-012 | 5152-012BX | $119.00 | |
| 3 | Blower Motor (230/208) | 8106-030 | S8106-046 | $185.00 | |
| 4 | Capacitor | 8552-005 | 8552-005BX | $31.00 | |
| 5 | Motor Mount | 8200-040 | 8200-040BX | $59.00 | |
| 6 | Grommets | 5451-011 | $2.00 | ||
| 7 | Back Brace | 105-880 | $6.00 | ||
| 8 | Side Angle | 105-881 | $6.00 | ||
| 9 | Front Brace | 103-389 | 103-389BX | $57.00 | |
| 10 | Housing | 151-101 | 151-101BX | $151.00 | |
| 11 | Diffuser | 144-166 | $7.00 |
| EHWA05-A20 (PDF file download) | |||||
| Heat Strip 10 KW | 8604-091 | 8604-091BX | $169.00 | ||
| Heater Control Base | 127X210 | 127X210BX | $76.00 | ||
| Limit Control | 8402-075 | 8402-075BX | $47.00 | ||
| Thermal Cutoff | 8402-093 | 8402-093BX | $29.00 | ||
| Circuit Breaker 60A 3Ph | 8615-041 | 8615-041BX | $49.00 | ||
| Heat Contactor | 8401-006 | 8401-006BX | $42.00 | ||
| Jumper Bar Base | 8615-047 | 8615-047BX | $41.00 | ||
| Ground Terminal | 8611-006 | $3.00 | |||
| Jumper Bar Cover | 8615-049 | 8615-049BX | $26.00 | ||
- Manufactured: December, 2008
- Parts Manual: 2110-415(I).pdf
- Wiring Diagram: 4095-129(C).pdf
