Bard Parts Lookup Tool
| NS | High Presssure with Switch (Flare) (Optional) | 1804-0106 | 1804-0106BX | $95.00 | |
| NS | Low Pressure Switch (Flare) (Optional) | 1804-0107 | 1804-0107BX | $69.00 | |
| NS | Low Ambient Control (Flare) (Optional) | CMA-6 | $95.00 | ||

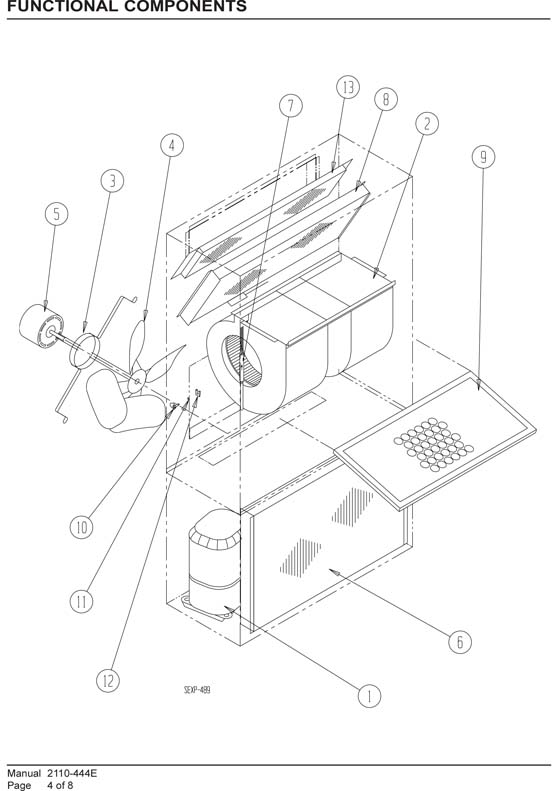

| 1 | Compressor | 8000-141 | 📞 Call | ||
| 2 | Blower Assembly | S900-248 | 900-326BX | $577.00 | |
| 3 | Fan Motor Mount | 8200-001 | 8200-001BX | $94.00 | |
| 4 | Fan Blade | 5151-033 | 5151-033BX | $123.00 | |
| 5 | Condensor Motor | 8103-016 | 8103-028BX | $210.00 | |
| 6 | Condensor Coil | 5051-092BX | 5051-155BX | $619.00 | |
| 7 | Cooling Capillary Assembly | 800-0198 | 800-0198BX | $133.00 | |
| 8 | Evaporator Coil | 5060-066BX | $409.00 | ||
| 9 | Air Filter 1" Throw-Away | 7004-011 | $10.00 | ||
| 9 | Air Filter 1" Washable (Optional) | 7003-032 | $111.00 | ||
| 9 | Air Filter 2" Pleated (Optional) | 7004-025 | $21.00 | ||
| 10 | 1/4" Turn Fastener | 1171-022 | 1171-022BX | $28.00 | |
| 11 | 1/4" Turn Retainer | 1171-024 | $3.00 | ||
| 12 | 1/4" Receptacle | 1171-023 | $5.00 |
| NS | Wiring Diagram (PDF file download) | 4095-228 | - | ||

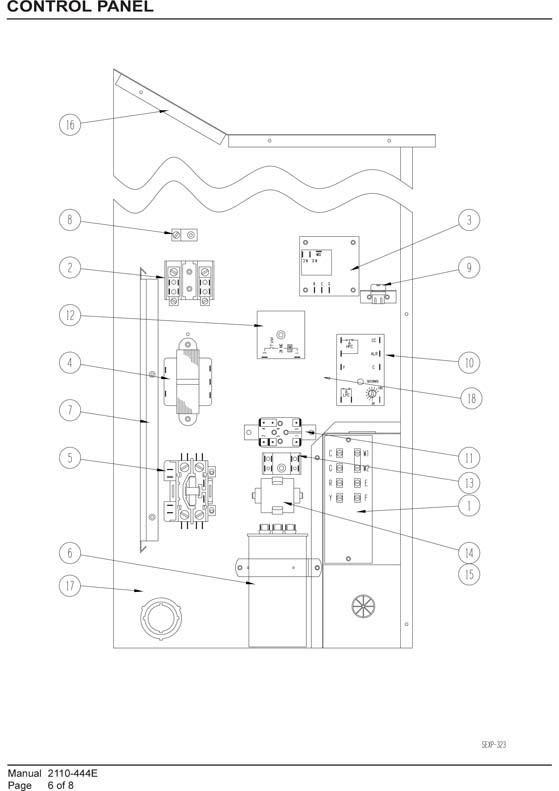

| 1 | Low Voltage Terminal Strip | 8607-020 | 8607-020BX | $19.00 | |
| 2 | Terminal Block 3 Pole | 8607-014 | 8607-014BX | $29.00 | |
| 3 | Blower Control | 8201-056 | 8201-056BX | $35.00 | |
| 4 | Transformer | 8407-034 | S8407-034 | $24.00 | |
| 5 | Compressor Contactor | 8401-002 | 8401-002BX | $60.00 | |
| 7 | Wire Shield | 135-122 | $18.00 | ||
| 8 | Ground Terminal | 8611-006 | $3.00 | ||
| 9 | 6 Pin Connector | 3000-968 | $5.00 | ||
| 10 | Compressor Control Module | 8201-088 | 8201-176BX | $99.00 | |
| 11 | Alarm Relay (Optional) | 8201-062 | 8201-062BX | $22.00 | |
| 12 | Compressor TDR (Optional) | 8201-050 | 8201-050BX | $23.00 | |
| 13 | Terminal Block (Optional) (Shown) | 8607-017 | 8607-017BX | $16.00 | |
| 14 | Start Device (PTCR) (Optional) | 8551-004 | 8551-004BX | $74.00 | |
| 16 | Control Panel Top | 117Y137 | $10.00 | ||
| 17 | Control Panel | 117Y123 | $56.00 |

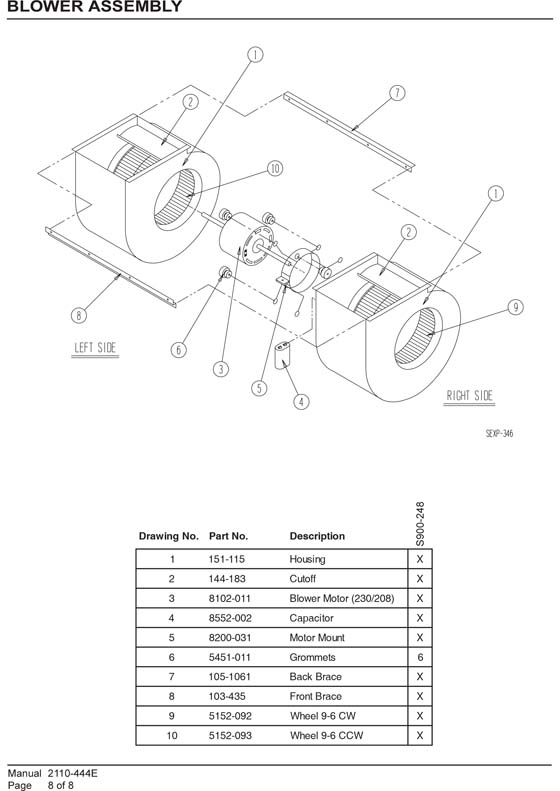

| 1 | Housing | 151-115 | 151-115BX | $136.00 | |
| 2 | Cutoff | 144-183 | $7.00 | ||
| 3 | Blower Motor (230/208) | 8102-011 | 8102-016BX | $312.00 | |
| 4 | Capacitor | 8552-002 | 8552-002BX | $36.00 | |
| 5 | Motor Mount | 8200-031 | 8200-031BX | $57.00 | |
| 6 | Grommets | 5451-011 | $2.00 | ||
| 7 | Back Brace | 105-1061 | $14.00 | ||
| 8 | Front Brace | 103-435 | $15.00 | ||
| 9 | Wheel 9-6 CW | 5152-092 | 5152-092BX | $109.00 | |
| 10 | Wheel 9-6 CCW | 5152-093 | 5152-093BX | $109.00 |
| Heat kit not found |
- Manufactured: December, 2007
- Parts Manual: 2110-444(E).pdf
- Wiring Diagram: 4095-228(C).pdf
