Bard Parts Lookup Tool
| NS | High Pressure Switch (Flare) (Optional) | 1804-0106 | 1804-0106BX | $105.00 | |
| NS | Low Pressure Switch (Flare) (Optional) | 1804-0107 | 1804-0107BX | $89.00 | |
| NS | Low Ambient Control (Flare) (Optional) | CMA-6 | $95.00 | ||

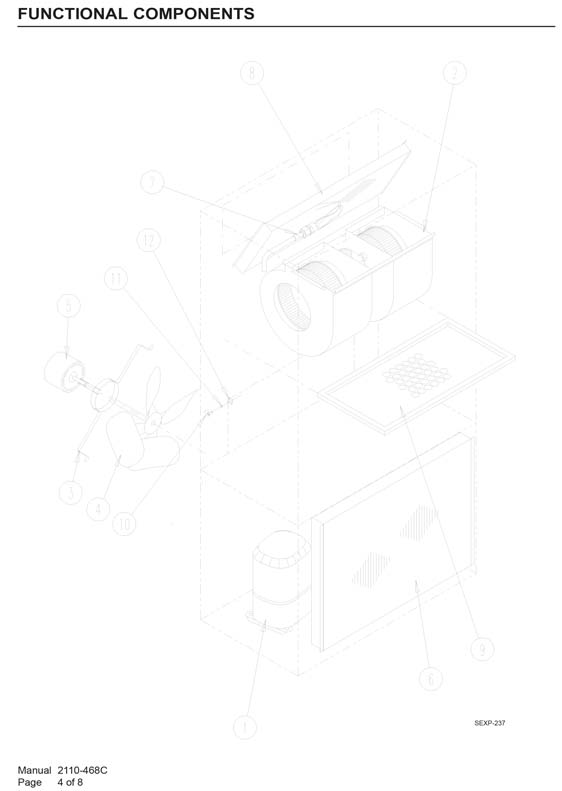

| 1 | Compressor | 8000-187 | 8000-932BX | $3,756.00 | |
| 2 | Blower Assembly | S900-185 | 900-185BX | $688.00 | |
| 3 | Fan Motor Mount | 8200-004 | 8200-004BX | $105.00 | |
| 4 | Fan Blade | 5151-027 | 5151-060BX | $142.00 | |
| 5 | Condenser Motor | 8105-039 | 8105-039BX | $278.00 | |
| 6 | Condenser Coil | 5051-088 | 📞 Call | ||
| 7 | Expansion Valve | 5651-131 | 5651-131BX | $150.00 | |
| 8 | Evaporator Coil | 5060-082 | 5060-082BX | $983.00 | |
| 9 | Air Filter 1" Throw-Away | 7003-016 | $27.00 | ||
| 9 | Air Filter 1" Washable (Optional) | 7003-030 | $110.00 | ||
| 9 | Air Filter 2" Pleated (Optional) | 7004-027 | $35.00 | ||
| 10 | 1/4" Turn Fastener | 1171-022 | 1171-022BX | $28.00 | |
| 11 | 1/4" Turn Retainer | 1171-024 | $3.00 | ||
| 12 | 1/4" Receptacle | 1171-023 | $5.00 |
| NS | Wiring Diagram (PDF file download) | 4095-231 | - | ||

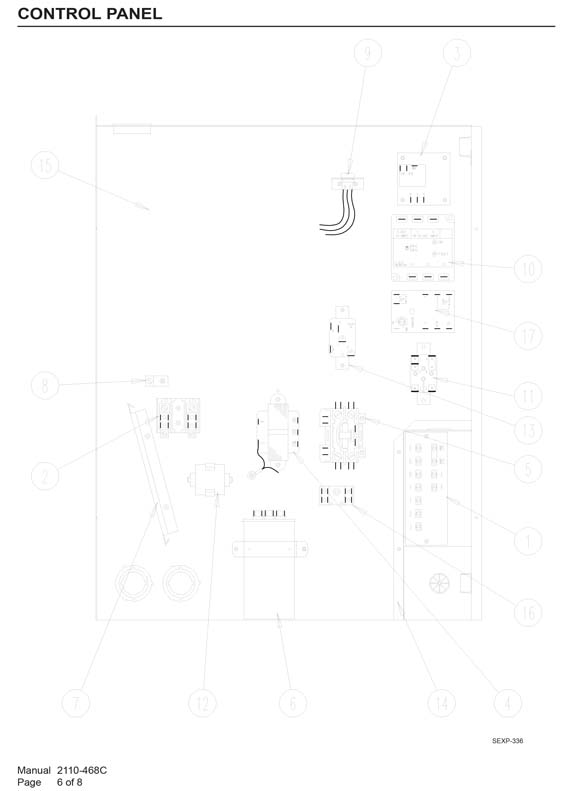

| 1 | Low Voltage Terminal Strip | 8607-020 | 8607-020BX | $19.00 | |
| 2 | Terminal Block 3 Pole | 8607-014 | 8607-014BX | $29.00 | |
| 3 | Blower Control | 8201-056 | 8201-056BX | $36.00 | |
| 4 | Transformer | 8407-034 | 8407-034BX | $27.00 | |
| 5 | Compressor Contactor | 8401-027 | 8401-027BX | $94.00 | |
| 7 | Wire Shield | 135-122 | $18.00 | ||
| 8 | Ground Terminal | 8611-006 | $3.00 | ||
| 9 | 6 Pin Connector | 3000-978 | 3000-1017 | $8.00 | |
| 10 | Phase Monitor | 8201-085 | 8201-174BX | $109.00 | |
| 11 | Alarm Relay (Optional) | 8201-062 | 8201-062BX | $22.00 | |
| 13 | Crankcase Heat Relay | 8201-009 | 8201-009BX | $19.00 | |
| 14 | Low Voltage Box | 117Y139 | 117Y139BX | $69.00 | |
| 15 | Control Panel | 117Y143 | 117Y143BX | $123.00 | |
| 16 | Terminal Block (Optional) | 8607-017 | 8607-017BX | $16.00 | |
| 17 | Compressor Control Module | 8201-088 | 8201-176BX | $99.00 |

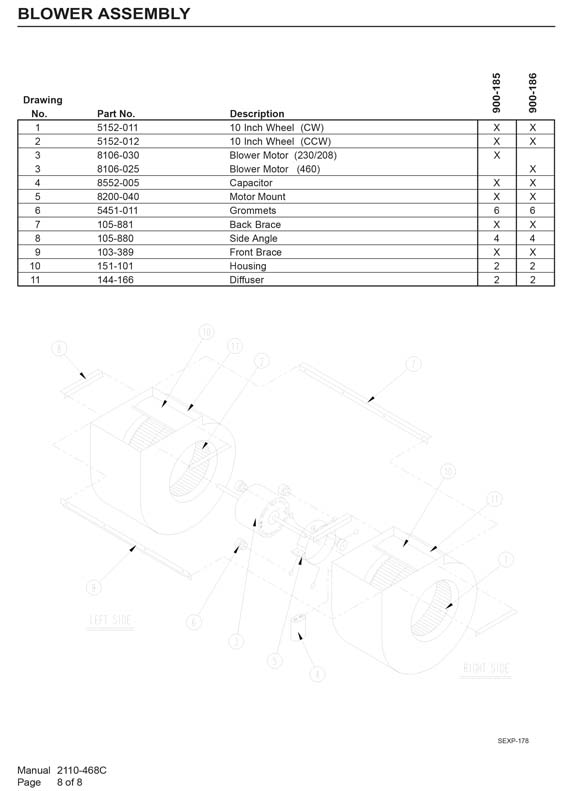

| 1 | 10 Inch Wheel (CW) | 5152-011 | 5152-011BX | $119.00 | |
| 2 | 10 Inch Wheel (CCW) | 5152-012 | 5152-012BX | $119.00 | |
| 3 | Blower Motor (230/208) | 8106-030 | 8106-046BX | $235.00 | |
| 4 | Capacitor | 8552-005 | 8552-005BX | $31.00 | |
| 5 | Motor Mount | 8200-040 | 8200-040BX | $59.00 | |
| 6 | Grommets | 5451-011 | $2.00 | ||
| 7 | Back Brace | 105-881 | 📞 Call | ||
| 8 | Side Angle | 105-880 | $6.00 | ||
| 9 | Front Brace | 103-389 | 103-389BX | $57.00 | |
| 10 | Housing | 151-101 | 151-101BX | $164.00 | |
| 11 | Diffuser | 144-166 | 144-166BX | $69.00 |
| Heat kit not found |
- Manufactured: December, 2006
- Parts Manual: 2110-468(C).pdf
- Wiring Diagram: 4095-231(E).pdf
